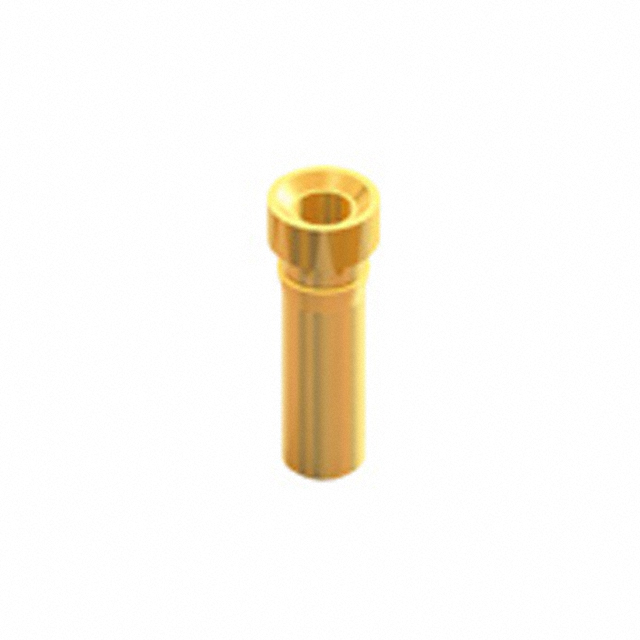

Image is for reference only , See Product Specifications
3506
| Manufacturers: | Keystone Electronics |
|---|---|
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Data Sheet: | 3506 |
| Description: | CONN PIN RCPT .015-.025 PRESSFIT |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Keystone Electronics |
| Product Category | Terminals - PC Pin Receptacles, Socket Connectors |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Tail Type | Standard Tail |
| Part Status | Active |
| Termination | Press-Fit |
| Socket Depth | 0.160" (4.06mm) |
| Tail Diameter | 0.025" (0.64mm) Square |
| Contact Finish | Tin-Lead |
| Board Thickness | - |
| Flange Diameter | 0.072" (1.83mm) |
| Insertion Force | - |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.703" (17.86mm) |
| Pin Hole Diameter | - |
| Accepts Pin Diameter | 0.015" ~ 0.025" (0.38mm ~ 0.64mm) |
| Operating Temperature | - |
| Mounting Hole Diameter | 0.055" (1.40mm) |
| Accepts Square Pin Size | - |
| Contact Finish Thickness | 200.0µin (5.08µm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.36 | $0.35 | $0.35 |
