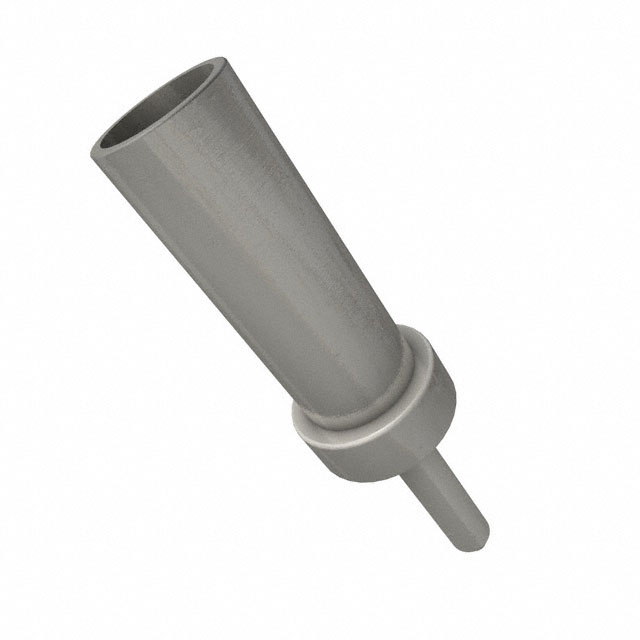

Image is for reference only , See Product Specifications
1997-2
| Manufacturers: | Keystone Electronics |
|---|---|
| Product Category: | Terminals - PC Pin, Single Post Connectors |
| Data Sheet: | 1997-2 |
| Description: | CONN PC PIN CIRC 0.020DIA TIN |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Keystone Electronics |
| Product Category | Terminals - PC Pin, Single Post Connectors |
| Series | - |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Part Status | Active |
| Termination | Press-Fit |
| Mounting Type | Through Hole |
| Terminal Type | PC Pin |
| Contact Finish | Tin |
| Terminal Style | Single End |
| Board Thickness | 0.062" (1.57mm) |
| Flange Diameter | 0.055" (1.40mm) |
| Contact Material | Brass |
| Insulation Color | - |
| Length - Overall | 0.295" (7.49mm) |
| Length - Above Flange | 0.279" (7.09mm) |
| Length - Below Flange | - |
| Material - Insulation | - |
| Mounting Hole Diameter | 0.040" (1.02mm) |
| Pin Size - Above Flange | 0.020" (0.51mm) Dia |
| Pin Size - Below Flange | - |
| Contact Finish Thickness | 200.0µin (5.08µm) |
In Stock 724 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.45 | $0.44 | $0.43 |
