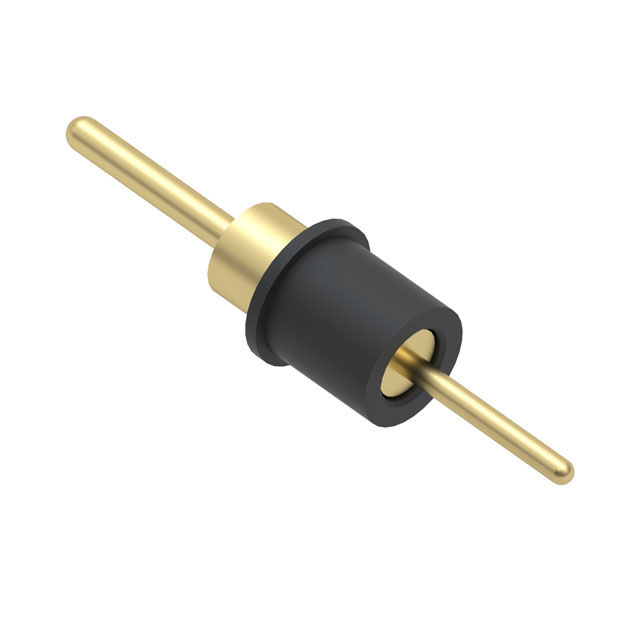

Image is for reference only , See Product Specifications
1988-2
| Manufacturers: | Keystone Electronics |
|---|---|
| Product Category: | Terminals - PC Pin, Single Post Connectors |
| Data Sheet: | 1988-2 |
| Description: | CONN PC PIN CIRC 0.018DIA GOLD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Keystone Electronics |
| Product Category | Terminals - PC Pin, Single Post Connectors |
| Series | - |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Part Status | Active |
| Termination | Press-Fit, Pentagon |
| Mounting Type | Through Hole |
| Terminal Type | PC Pin |
| Contact Finish | Gold |
| Terminal Style | Single End |
| Board Thickness | 0.062" (1.57mm) |
| Flange Diameter | 0.056" (1.42mm) |
| Contact Material | Brass |
| Insulation Color | - |
| Length - Overall | 0.215" (5.46mm) |
| Length - Above Flange | 0.125" (3.18mm) |
| Length - Below Flange | 0.060" (1.52mm) |
| Material - Insulation | - |
| Mounting Hole Diameter | 0.026" (0.66mm) |
| Pin Size - Above Flange | 0.018" (0.46mm) Dia |
| Pin Size - Below Flange | 0.029" (0.72mm) Pentagon |
| Contact Finish Thickness | 10.0µin (0.25µm) |
In Stock 19 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.48 | $0.47 | $0.46 |
