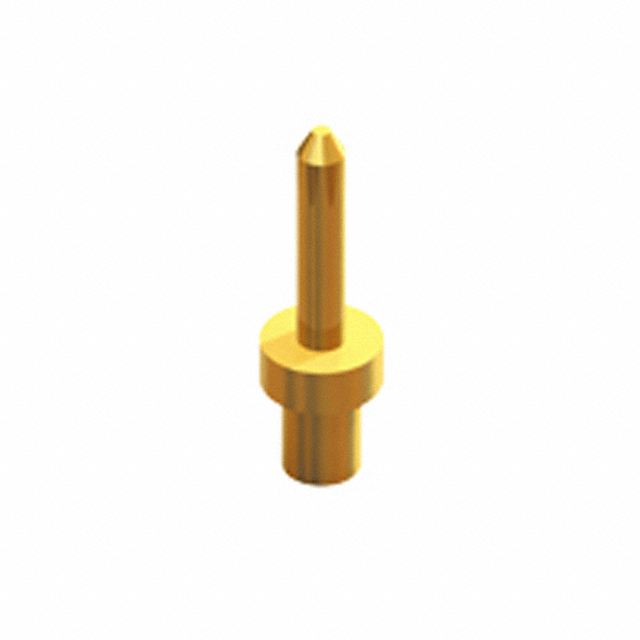

Image is for reference only , See Product Specifications
1987-1
| Manufacturers: | Keystone Electronics |
|---|---|
| Product Category: | Terminals - PC Pin, Single Post Connectors |
| Data Sheet: | 1987-1 |
| Description: | CONN PC PIN CIRC 0.018DIA TIN |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Keystone Electronics |
| Product Category | Terminals - PC Pin, Single Post Connectors |
| Series | - |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Part Status | Active |
| Termination | Press-Fit, Knurled |
| Mounting Type | Through Hole |
| Terminal Type | PC Pin |
| Contact Finish | Tin |
| Terminal Style | Single End |
| Board Thickness | 0.032" (0.81mm) |
| Flange Diameter | 0.045" (1.14mm) |
| Contact Material | Brass |
| Insulation Color | - |
| Length - Overall | 0.190" (4.83mm) |
| Length - Above Flange | 0.125" (3.18mm) |
| Length - Below Flange | 0.045" (1.14mm) |
| Material - Insulation | - |
| Mounting Hole Diameter | 0.026" (0.66mm) |
| Pin Size - Above Flange | 0.018" (0.46mm) Dia |
| Pin Size - Below Flange | 0.028" (0.71mm) Dia |
| Contact Finish Thickness | 200.0µin (5.08µm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.28 | $0.27 | $0.27 |
Request Quote
