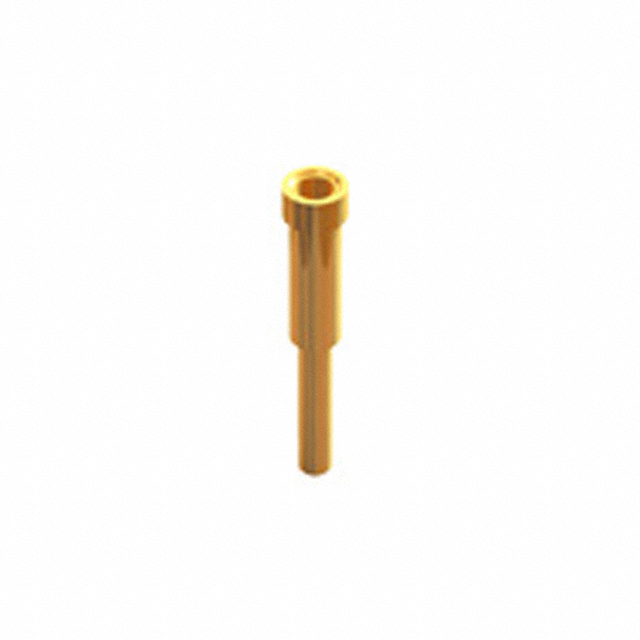

Image is for reference only , See Product Specifications
1698
| Manufacturers: | Keystone Electronics |
|---|---|
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Data Sheet: | 1698 |
| Description: | CONN PIN RCPT .025-.037 HEX |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Keystone Electronics |
| Product Category | Terminals - PC Pin Receptacles, Socket Connectors |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Tail Type | No Tail |
| Part Status | Active |
| Termination | Press-Fit, Hex |
| Socket Depth | 0.165" (4.19mm) |
| Tail Diameter | - |
| Contact Finish | Tin |
| Board Thickness | - |
| Flange Diameter | 0.078" (1.98mm) |
| Insertion Force | - |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.200" (5.08mm) |
| Pin Hole Diameter | - |
| Accepts Pin Diameter | 0.025" ~ 0.037" (0.64mm ~ 0.94mm) |
| Operating Temperature | - |
| Mounting Hole Diameter | 0.063" (1.60mm) |
| Accepts Square Pin Size | - |
| Contact Finish Thickness | 200.0µin (5.08µm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.54 | $0.53 | $0.52 |
