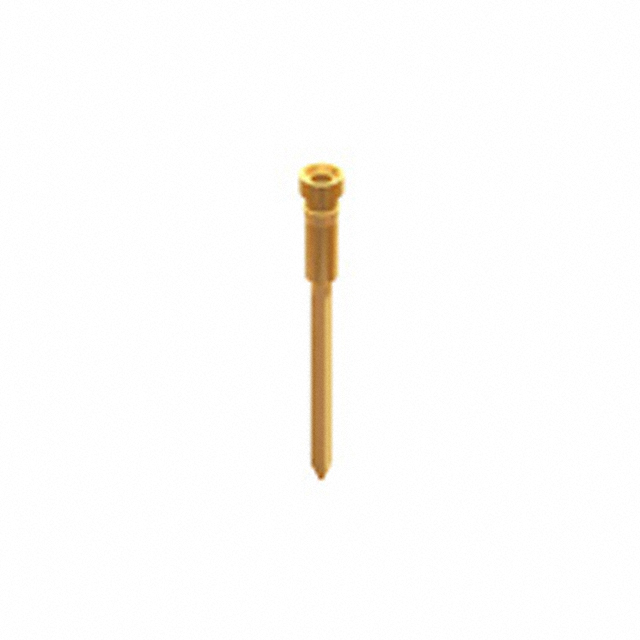

Image is for reference only , See Product Specifications
1695
| Manufacturers: | Keystone Electronics |
|---|---|
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Data Sheet: | 1695 |
| Description: | CONN PIN RCPT .022-.032 SOLDER |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Keystone Electronics |
| Product Category | Terminals - PC Pin Receptacles, Socket Connectors |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Tail Type | No Tail |
| Part Status | Active |
| Termination | Solder |
| Socket Depth | 0.233" (5.92mm) |
| Tail Diameter | - |
| Contact Finish | Gold |
| Board Thickness | - |
| Flange Diameter | 0.077" (1.96mm) |
| Insertion Force | - |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.259" (6.58mm) |
| Pin Hole Diameter | - |
| Accepts Pin Diameter | 0.022" ~ 0.032" (0.56mm ~ 0.81mm) |
| Operating Temperature | - |
| Mounting Hole Diameter | 0.063" (1.60mm) |
| Accepts Square Pin Size | - |
| Contact Finish Thickness | 10.0µin (0.25µm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.47 | $0.46 | $0.45 |
