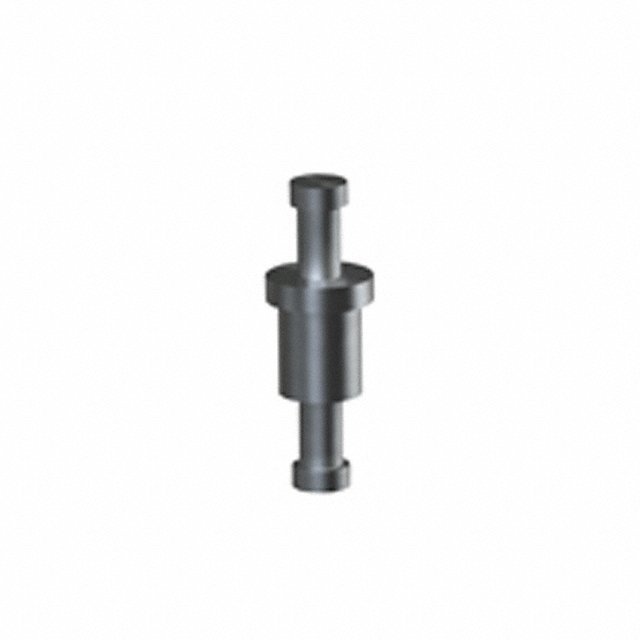

Image is for reference only , See Product Specifications
1575-2
| Manufacturers: | Keystone Electronics |
|---|---|
| Product Category: | Terminals - Turret Connectors |
| Data Sheet: | 1575-2 |
| Description: | TERM TURRET DOUBLE L=4.72MM TIN |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Keystone Electronics |
| Product Category | Terminals - Turret Connectors |
| Series | - |
| Insulation | Non-Insulated |
| Part Status | Active |
| Termination | Staking Flare |
| Mounting Type | Through Hole |
| Terminal Type | Double End |
| Contact Finish | Tin |
| Board Thickness | 0.062" (1.57mm) |
| Flange Diameter | 0.093" (2.36mm) |
| Staking Side ID | - |
| Staking Side OD | 0.072" (1.83mm) |
| Contact Material | Brass |
| Insulation Color | - |
| Length - Overall | 0.350" (8.89mm) |
| Number of Turrets | Single, Double |
| Length - Above Board | 0.186" (4.72mm) |
| Length - Below Flange | 0.164" (4.17mm) |
| Material - Insulation | - |
| Diameter - Turret Head | 0.050" (1.27mm) |
| Mounting Hole Diameter | 0.076" (1.93mm) |
| Contact Finish Thickness | - |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.33 | $0.32 | $0.32 |
