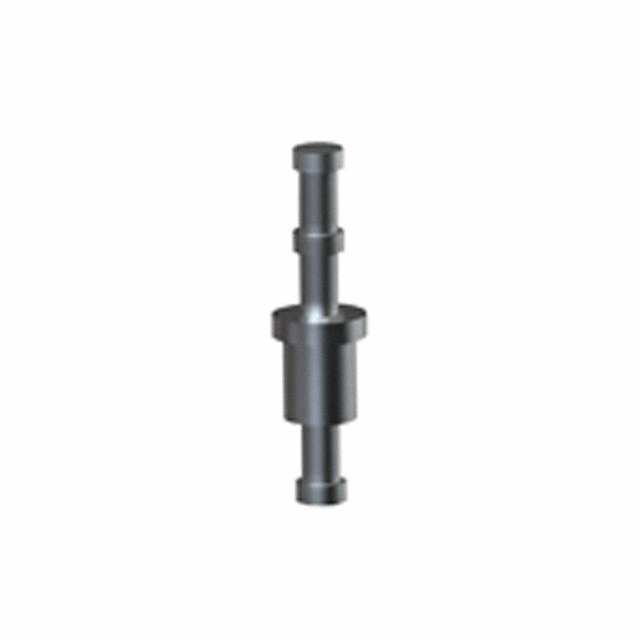

Image is for reference only , See Product Specifications
1559-4
| Manufacturers: | Keystone Electronics |
|---|---|
| Product Category: | Terminals - Turret Connectors |
| Data Sheet: | 1559-4 |
| Description: | TERM TURRET HOLLOW L=4.75MM TIN |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Keystone Electronics |
| Product Category | Terminals - Turret Connectors |
| Series | - |
| Insulation | Non-Insulated |
| Part Status | Active |
| Termination | Staking Flare |
| Mounting Type | Through Hole |
| Terminal Type | Single End, Hollow |
| Contact Finish | Tin |
| Board Thickness | 0.125" (3.18mm) |
| Flange Diameter | 0.125" (3.18mm) |
| Staking Side ID | - |
| Staking Side OD | 0.071" (1.80mm) |
| Contact Material | Brass |
| Insulation Color | - |
| Length - Overall | 0.343" (8.71mm) |
| Number of Turrets | Single |
| Length - Above Board | 0.187" (4.75mm) |
| Length - Below Flange | 0.156" (3.96mm) |
| Material - Insulation | - |
| Diameter - Turret Head | 0.097" (2.46mm) |
| Mounting Hole Diameter | 0.076" (1.93mm) |
| Contact Finish Thickness | - |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.15 | $0.15 | $0.14 |
