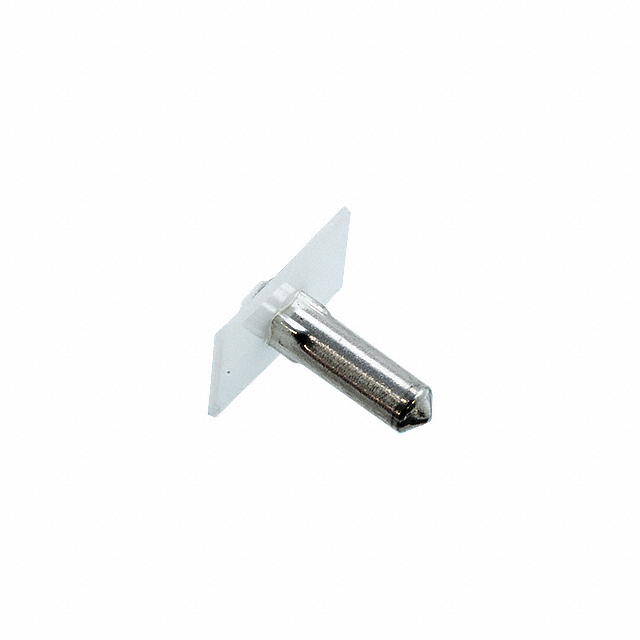

Image is for reference only , See Product Specifications
1236
| Manufacturers: | Keystone Electronics |
|---|---|
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Data Sheet: | 1236 |
| Description: | CONN PIN RCPT .010-.050 PRESSFIT |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Keystone Electronics |
| Product Category | Terminals - PC Pin Receptacles, Socket Connectors |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Tail Type | Standard Tail |
| Part Status | Active |
| Termination | Press-Fit |
| Socket Depth | 0.219" (5.56mm) |
| Tail Diameter | - |
| Contact Finish | Tin |
| Board Thickness | - |
| Flange Diameter | 0.080" (2.03mm) |
| Insertion Force | - |
| Contact Material | Brass |
| Length - Overall | 0.469" (11.90mm) |
| Pin Hole Diameter | 0.050" (1.27mm) |
| Accepts Pin Diameter | 0.010" ~ 0.050" (0.25mm ~ 1.27mm) |
| Operating Temperature | - |
| Mounting Hole Diameter | 0.062" ~ 0.067" (1.57mm ~ 1.70mm) |
| Accepts Square Pin Size | - |
| Contact Finish Thickness | - |
In Stock 4459 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.18 | $0.18 | $0.17 |
Request Quote
