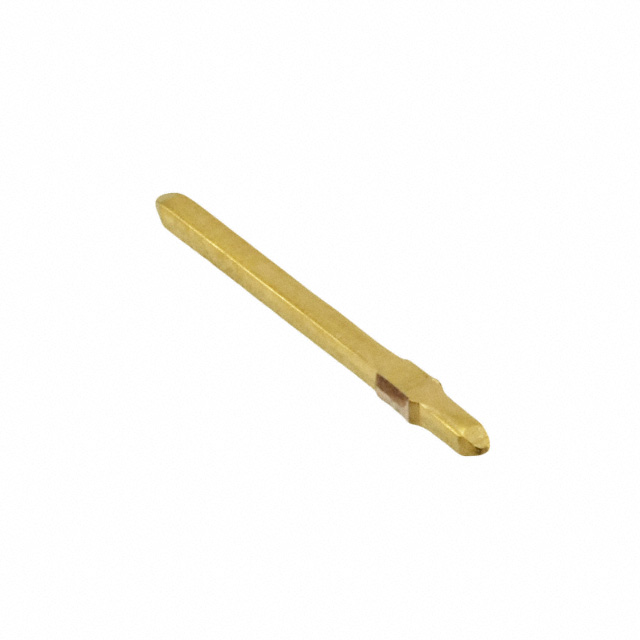

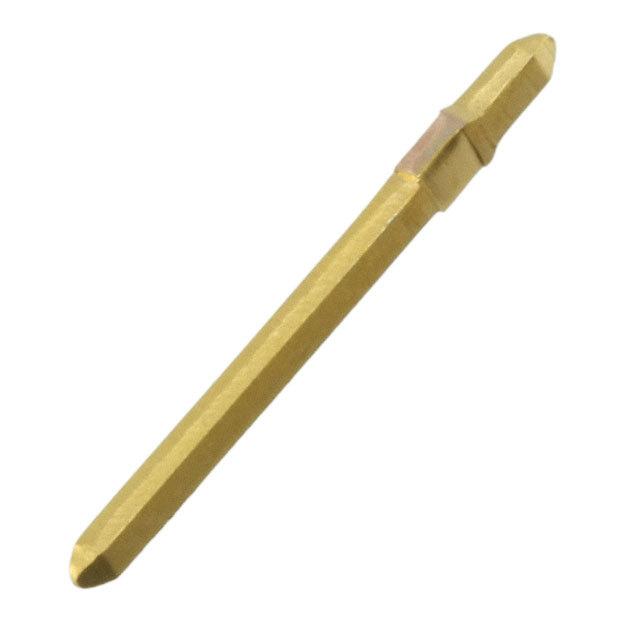

Image is for reference only , See Product Specifications
1219
| Manufacturers: | Keystone Electronics |
|---|---|
| Product Category: | Terminals - PC Pin, Single Post Connectors |
| Data Sheet: | 1219 |
| Description: | CONN PC PIN CIRC 0.052DIA TIN |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Keystone Electronics |
| Product Category | Terminals - PC Pin, Single Post Connectors |
| Series | - |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Part Status | Active |
| Termination | Swage |
| Mounting Type | Through Hole |
| Terminal Type | PC Pin |
| Contact Finish | Tin |
| Terminal Style | Double End |
| Board Thickness | - |
| Flange Diameter | 0.075" (1.91mm) |
| Contact Material | Brass |
| Insulation Color | - |
| Length - Overall | 0.458" (11.63mm) |
| Length - Above Flange | 0.115" (2.92mm) |
| Length - Below Flange | 0.312" (7.92mm) |
| Material - Insulation | - |
| Mounting Hole Diameter | 0.059" (1.50mm) |
| Pin Size - Above Flange | 0.052" (1.32mm) Dia |
| Pin Size - Below Flange | - |
| Contact Finish Thickness | - |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.03 | $0.03 | $0.03 |
