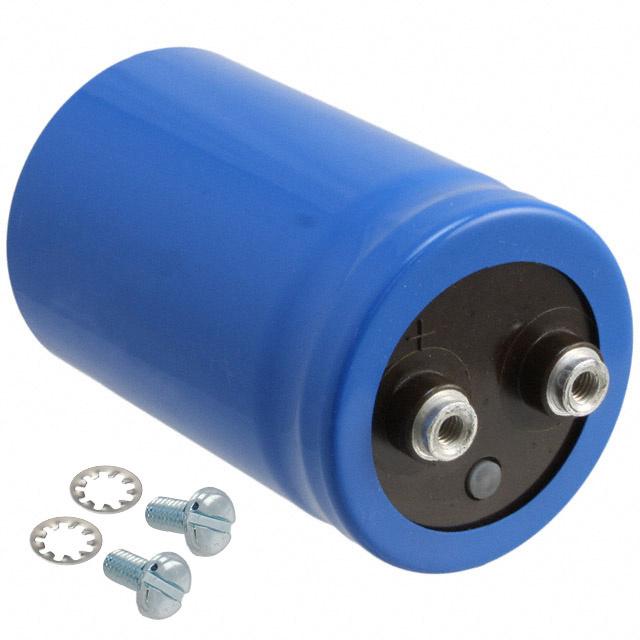

Image is for reference only , See Product Specifications
ALS80A274QM040
| Manufacturers: | KEMET |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | ALS80A274QM040 |
| Description: | CAP ALUM 270000UF 20% 40V SCREW |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | KEMET |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | ALS80 |
| Ratings | - |
| Impedance | 8 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 270000µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 1.252" (31.80mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Voltage - Rated | 40V |
| Lifetime @ Temp. | 9000 Hrs @ 105°C |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 5.236" (133.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 30.2A @ 100Hz |
| Ripple Current @ High Frequency | 31.4A @ 10kHz |
| ESR (Equivalent Series Resistance) | 7mOhm @ 100Hz |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $53.96 | $52.88 | $51.82 |
Request Quote
