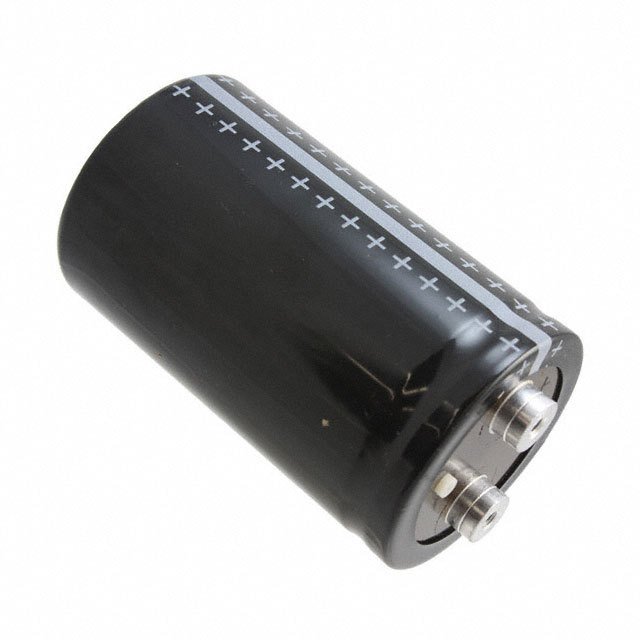

Image is for reference only , See Product Specifications
ALS70A562NP500
| Manufacturers: | KEMET |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | ALS70A562NP500 |
| Description: | CAP ALUM 5600UF 20% 500V SCREW |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | KEMET |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | ALS70 |
| Ratings | - |
| Impedance | 38 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 5600µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 1.252" (31.80mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Voltage - Rated | 500V |
| Lifetime @ Temp. | 20000 Hrs @ 85°C |
| Size / Dimension | 3.031" Dia (77.00mm) |
| Height - Seated (Max) | 5.827" (148.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 16.6A @ 100Hz |
| Ripple Current @ High Frequency | 24A @ 10kHz |
| ESR (Equivalent Series Resistance) | 49mOhm @ 100Hz |
In Stock 53 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $67.12 | $65.78 | $64.46 |
Request Quote
