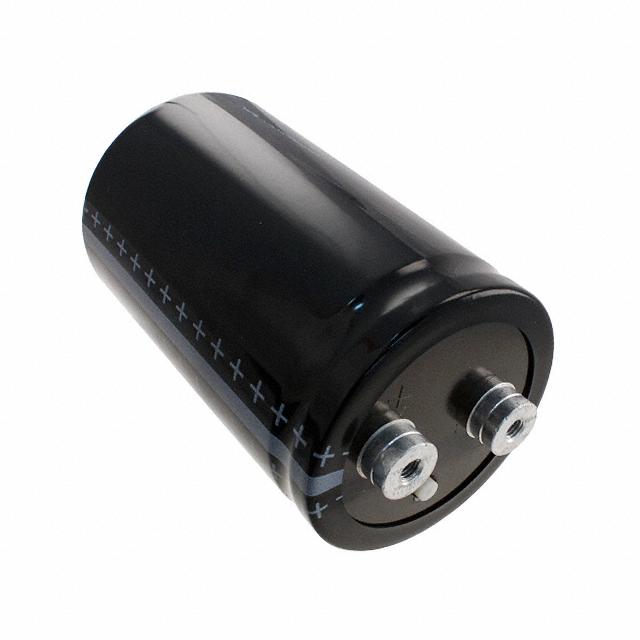

Image is for reference only , See Product Specifications
ALS70A104NS100
| Manufacturers: | KEMET |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | ALS70A104NS100 |
| Description: | CAP ALUM 100000UF 20% 100V SCREW |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | KEMET |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | ALS70 |
| Ratings | - |
| Impedance | 9 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 100000µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 1.252" (31.80mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Voltage - Rated | 100V |
| Lifetime @ Temp. | 20000 Hrs @ 85°C |
| Size / Dimension | 3.031" Dia (77.00mm) |
| Height - Seated (Max) | 7.717" (196.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 32.5A @ 100Hz |
| Ripple Current @ High Frequency | 34.3A @ 10kHz |
| ESR (Equivalent Series Resistance) | 8mOhm @ 100Hz |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $68.62 | $67.25 | $65.90 |
