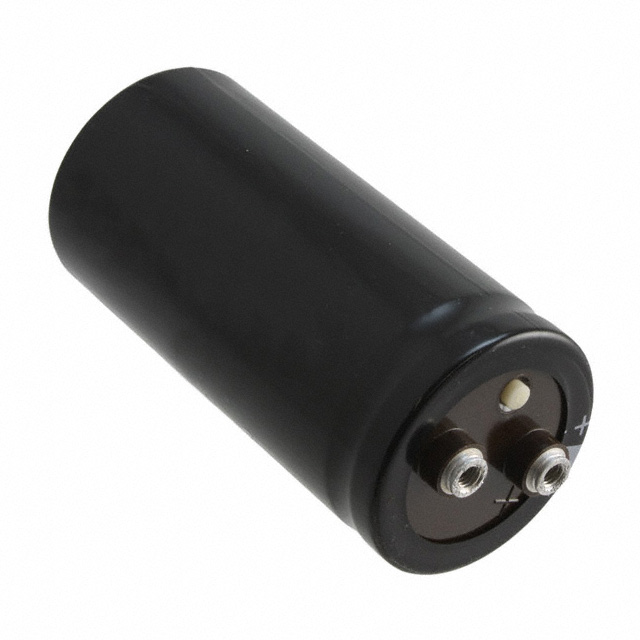

Image is for reference only , See Product Specifications
ALS31A103KE100
| Manufacturers: | KEMET |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | ALS31A103KE100 |
| Description: | CAP ALUM 10000UF 20% 100V SCREW |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | KEMET |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | ALS31 |
| Ratings | - |
| Impedance | 24 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 10000µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.874" (22.20mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Voltage - Rated | 100V |
| Lifetime @ Temp. | 18000 Hrs @ 85°C |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.307" (84.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 10.1A @ 100Hz |
| Ripple Current @ High Frequency | 10.5A @ 10kHz |
| ESR (Equivalent Series Resistance) | 28mOhm @ 100Hz |
In Stock 83 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $27.17 | $26.63 | $26.09 |
Request Quote
