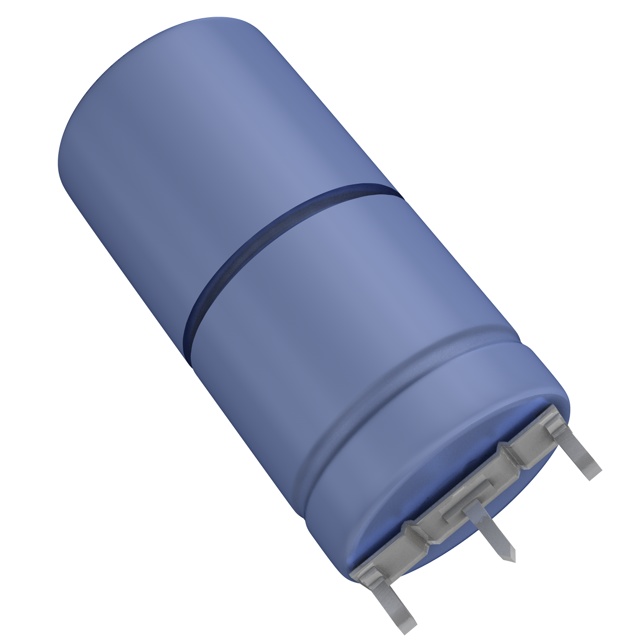

Image is for reference only , See Product Specifications
ALC80F752EB063
| Manufacturers: | KEMET |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | ALC80F752EB063 |
| Description: | SNAP-IN HIGH CV 105C 7500UF 63V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | KEMET |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | ALC80 |
| Ratings | - |
| Impedance | 48 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 7500µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 3 Lead |
| Voltage - Rated | 63V |
| Lifetime @ Temp. | 9000 Hrs @ 105°C |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 5.52A @ 100Hz |
| Ripple Current @ High Frequency | 6.95A @ 10kHz |
| ESR (Equivalent Series Resistance) | 60mOhm @ 100Hz |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $5.16 | $5.06 | $4.96 |
