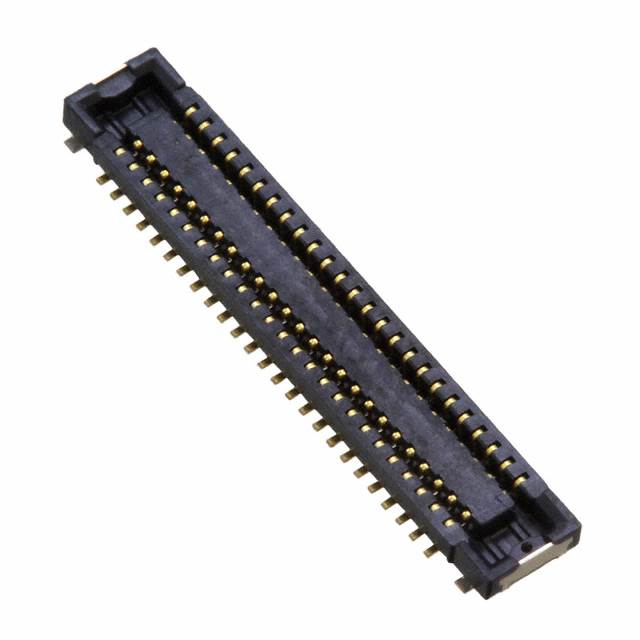

Image is for reference only , See Product Specifications
WR-70P-HF-HD-A1E-R1200
| Manufacturers: | JAE Electronics |
|---|---|
| Product Category: | Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) |
| Data Sheet: | WR-70P-HF-HD-A1E-R1200 |
| Description: | CONN PLUG 70POS R/A SMD GOLD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | JAE Electronics |
| Product Category | Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) |
| Pitch | 0.020" (0.50mm) |
| Series | WR |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Height Above Board | 0.185" (4.70mm) |
| Number of Positions | 70 |
| Mated Stacking Heights | - |
| Contact Finish Thickness | 3.94µin (0.10µm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $4.48 | $4.39 | $4.30 |
