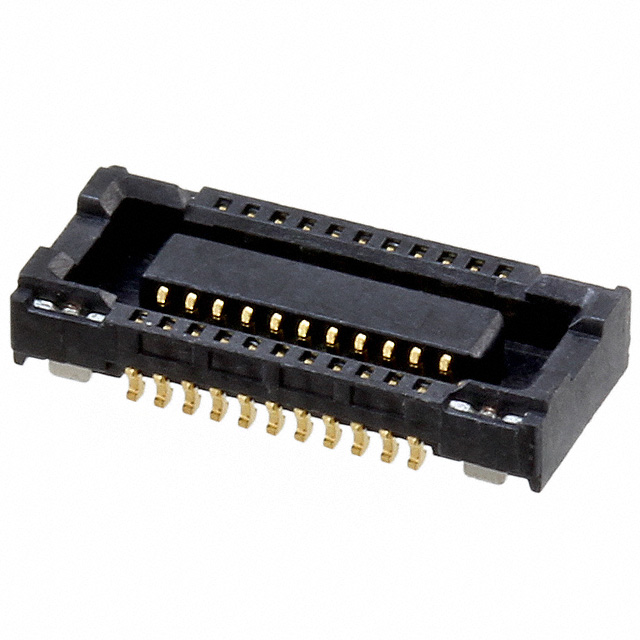

Image is for reference only , See Product Specifications
WP7-P020VA1-R500
| Manufacturers: | JAE Electronics |
|---|---|
| Product Category: | Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) |
| Data Sheet: | WP7-P020VA1-R500 |
| Description: | CONN PLUG 20POS SMD GOLD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | JAE Electronics |
| Product Category | Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) |
| Pitch | 0.016" (0.40mm) |
| Series | WP7 |
| Features | Solder Retention |
| Packaging | Digi-Reel® |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Height Above Board | 0.020" (0.50mm) |
| Number of Positions | 20 |
| Mated Stacking Heights | 0.7mm |
| Contact Finish Thickness | 3.94µin (0.10µm) |
In Stock 250 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Request Quote
