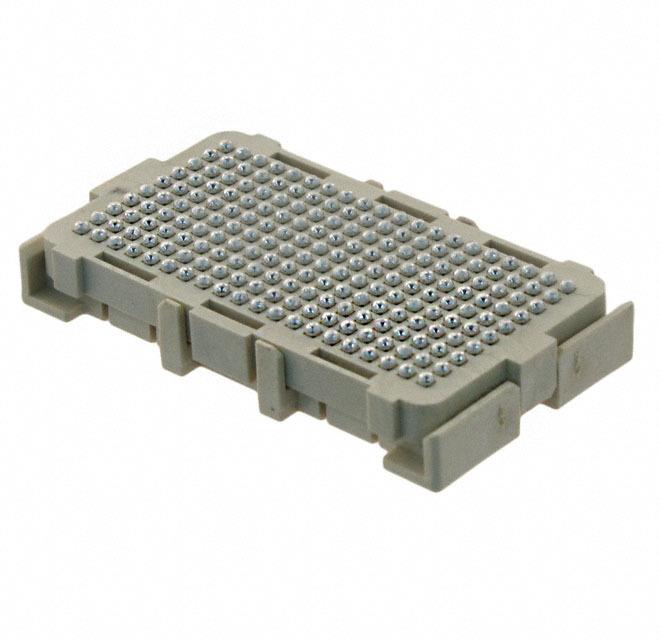

Image is for reference only , See Product Specifications
WD2M144WB2R300
| Manufacturers: | JAE Electronics |
|---|---|
| Product Category: | Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) |
| Data Sheet: | WD2M144WB2R300 |
| Description: | CONN PLUG 144POS SMD GOLD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | JAE Electronics |
| Product Category | Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) |
| Pitch | 0.020" (0.50mm) |
| Series | WD2 |
| Features | Board Guide, Solder Retention |
| Packaging | Cut Tape (CT) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Height Above Board | 0.413" (10.50mm) |
| Number of Positions | 148 (144 + 4 Power) |
| Mated Stacking Heights | - |
| Contact Finish Thickness | 11.8µin (0.30µm) |
In Stock 383 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $22.61 | $22.16 | $21.71 |
