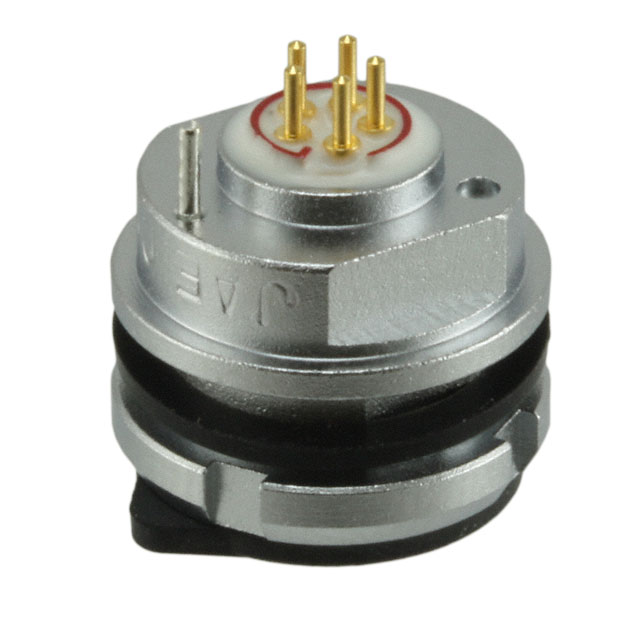

Image is for reference only , See Product Specifications
JB5CS05FM00N
| Manufacturers: | JAE Electronics |
|---|---|
| Product Category: | Circular Connectors |
| Data Sheet: | JB5CS05FM00N |
| Description: | CONN RCPT FMALE 5POS SOLDER CUP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | JAE Electronics |
| Product Category | Circular Connectors |
| Color | Silver |
| Series | JB5 |
| Features | Dust Cap |
| Packaging | Tray |
| Shielding | Shielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Medical, Telecommunications, Test & Measurement |
| Shell Finish | Chromium |
| Cable Opening | - |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Push-Pull |
| Shell Material | Copper Alloy |
| Voltage Rating | 320VAC |
| Insert Material | Synthetic Resin |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Number of Positions | 5 |
| Shell Size - Insert | S |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $19.52 | $19.13 | $18.75 |
