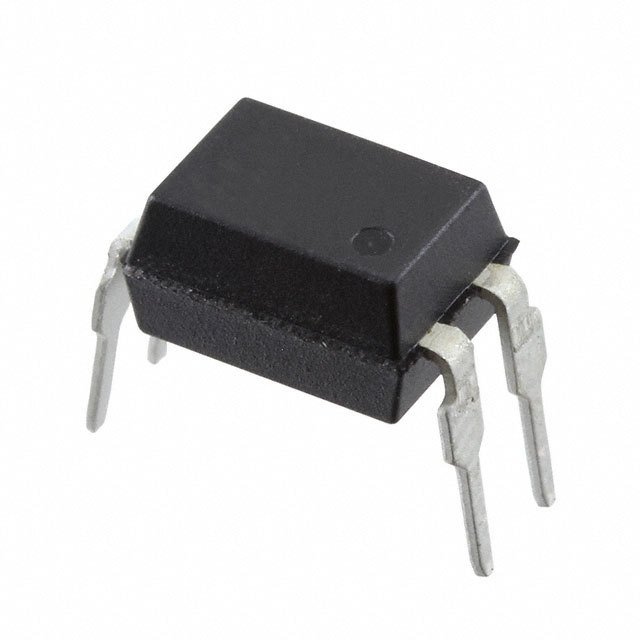

Image is for reference only , See Product Specifications
TLP521XGB
| Manufacturers: | Isocom Components 2004 LTD |
|---|---|
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Data Sheet: | TLP521XGB |
| Description: | OPTOISO 5.3KV 1CH TRANS 4DIP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Isocom Components 2004 LTD |
| Product Category | Optoisolators - Transistor, Photovoltaic Output |
| Series | - |
| Packaging | Tube |
| Input Type | DC |
| Output Type | Transistor |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -30°C ~ 100°C |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Voltage - Output (Max) | 55V |
| Supplier Device Package | - |
| Current - Output / Channel | - |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Current Transfer Ratio (Min) | 100% @ 5mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Turn On / Turn Off Time (Typ) | - |
| Current - DC Forward (If) (Max) | 50mA |
In Stock 2576 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.47 | $0.46 | $0.45 |
