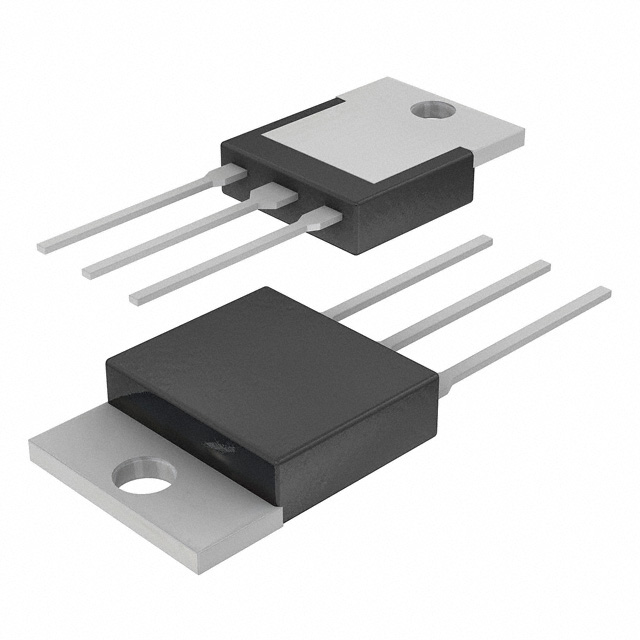

Image is for reference only , See Product Specifications
IRFBA1404PPBF
| Manufacturers: | Infineon Technologies |
|---|---|
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Data Sheet: | IRFBA1404PPBF |
| Description: | MOSFET N-CH 40V 206A SUPER-220 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Infineon Technologies |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Series | HEXFET® |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | TO-273AA |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 3.7mOhm @ 95A, 10V |
| Power Dissipation (Max) | 300W (Tc) |
| Supplier Device Package | SUPER-220™ (TO-273AA) |
| Gate Charge (Qg) (Max) @ Vgs | 200nC @ 10V |
| Drain to Source Voltage (Vdss) | 40V |
| Input Capacitance (Ciss) (Max) @ Vds | 7360pF @ 25V |
| Current - Continuous Drain (Id) @ 25°C | 206A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.22 | $2.18 | $2.13 |
