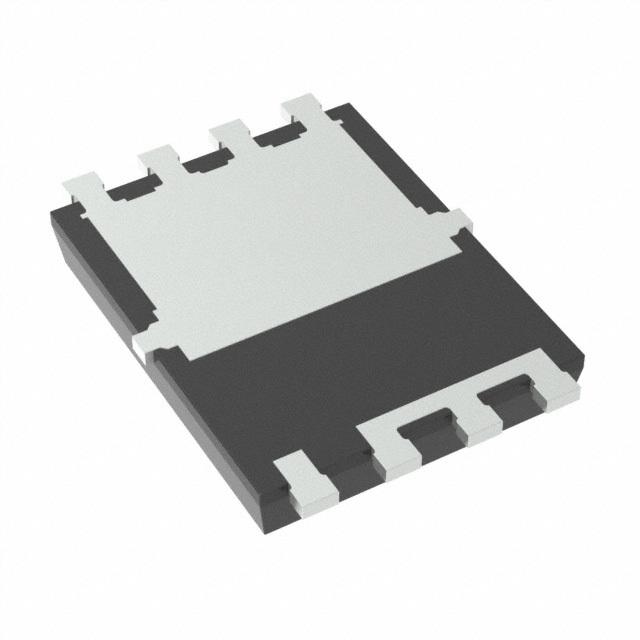

Image is for reference only , See Product Specifications
IPL65R230C7AUMA1
| Manufacturers: | Infineon Technologies |
|---|---|
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Data Sheet: | IPL65R230C7AUMA1 |
| Description: | MOSFET N-CH 650V 10A 4VSON |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Infineon Technologies |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Series | CoolMOS™ C7 |
| FET Type | N-Channel |
| Packaging | Digi-Reel® |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 4-PowerTSFN |
| Vgs(th) (Max) @ Id | 4V @ 240µA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 230mOhm @ 2.4A, 10V |
| Power Dissipation (Max) | 67W (Tc) |
| Supplier Device Package | PG-VSON-4 |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V |
| Drain to Source Voltage (Vdss) | 650V |
| Input Capacitance (Ciss) (Max) @ Vds | 996pF @ 400V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
In Stock 1509 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Request Quote
