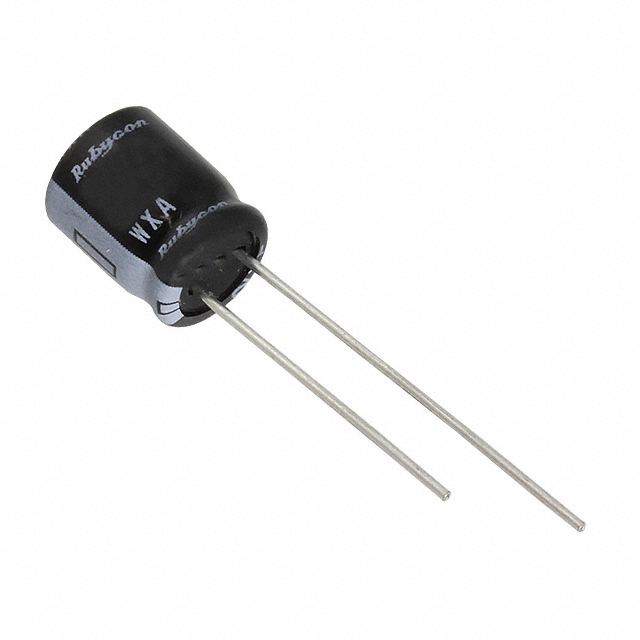

Image is for reference only , See Product Specifications
128KXM6R3MLQ
| Manufacturers: | Illinois Capacitor |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | 128KXM6R3MLQ |
| Description: | CAP ALUM 1200UF 20% 6.3V T/H |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Illinois Capacitor |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | KXM |
| Ratings | - |
| Impedance | 144 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 1200µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.197" (5.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 6.3V |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 858mA @ 120Hz |
| Ripple Current @ High Frequency | 1.43A @ 100kHz |
| ESR (Equivalent Series Resistance) | 303.9mOhm @ 120Hz |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.11 | $0.11 | $0.11 |
Request Quote
