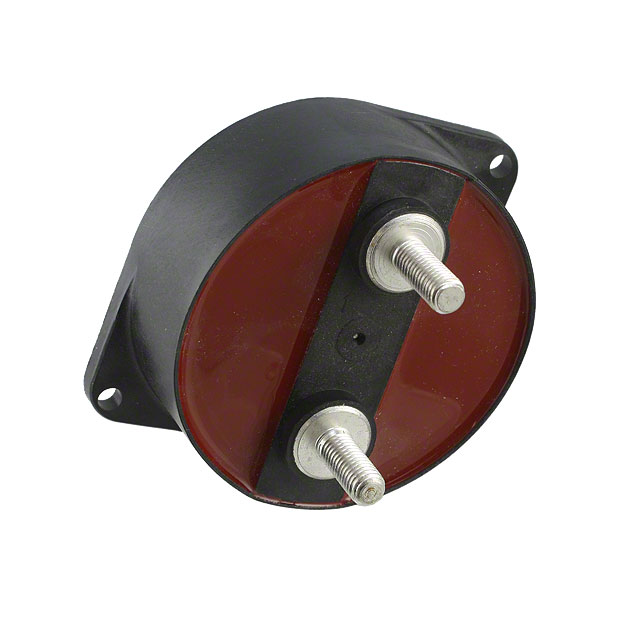

Image is for reference only , See Product Specifications
104HC1102K2CM6
| Manufacturers: | Illinois Capacitor |
|---|---|
| Product Category: | Film Capacitors |
| Data Sheet: | 104HC1102K2CM6 |
| Description: | CAP FILM 0.1UF 10% 1KVAC CHAS MT |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Illinois Capacitor |
| Product Category | Film Capacitors |
| Series | HC1 |
| Ratings | - |
| Features | - |
| Packaging | Bulk |
| Tolerance | ±10% |
| Capacitance | 0.1µF |
| Part Status | Active |
| Termination | Threaded, Female |
| Applications | Conduction Cooled; High Pulse, DV/DT |
| Lead Spacing | - |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 2.677" L x 1.181" W (68.00mm x 30.00mm) |
| Dielectric Material | Polypropylene (PP) |
| Voltage Rating - AC | 1000V (1kV) |
| Voltage Rating - DC | - |
| Height - Seated (Max) | 1.193" (30.30mm) |
| Operating Temperature | -40°C ~ 85°C |
| ESR (Equivalent Series Resistance) | 1.5 mOhms |
In Stock 12 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $89.90 | $88.10 | $86.34 |
