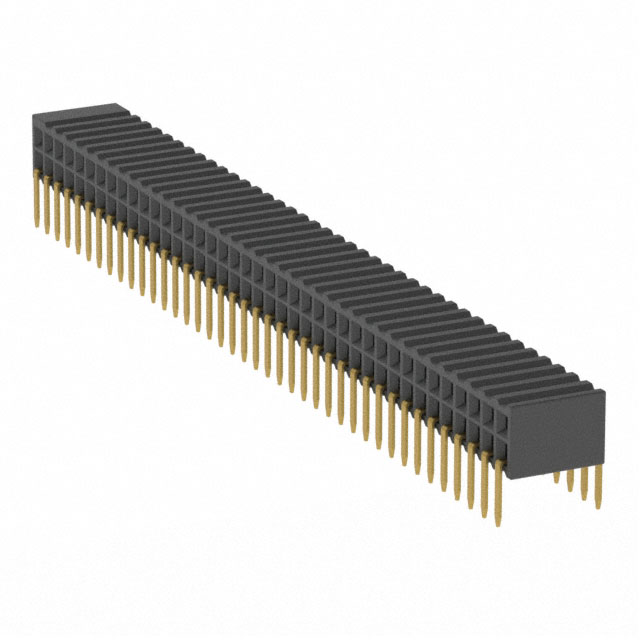

Image is for reference only , See Product Specifications
M50-4302345
| Manufacturers: | Harwin Inc. |
|---|---|
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Data Sheet: | M50-4302345 |
| Description: | CONN RCPT 46POS 0.05 GOLD SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Harwin Inc. |
| Product Category | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Style | Board to Board |
| Series | Archer M50 |
| Features | Board Guide |
| Packaging | Tube |
| Part Status | Obsolete |
| Termination | Solder |
| Applications | General Purpose, Medical, Telecommunications |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | - |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.181" (4.60mm) |
| Ingress Protection | - |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 46 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | - |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | 6mm, 6.5mm |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
