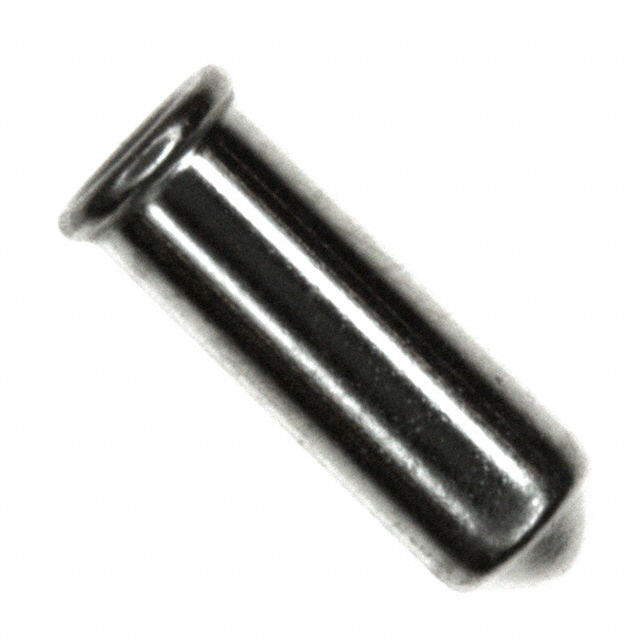

Image is for reference only , See Product Specifications
H8505-05
| Manufacturers: | Harwin Inc. |
|---|---|
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Data Sheet: | H8505-05 |
| Description: | CONN PIN RCPT .023-.033 SOLDER |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Harwin Inc. |
| Product Category | Terminals - PC Pin Receptacles, Socket Connectors |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Tail Type | No Tail |
| Part Status | Active |
| Termination | Solder |
| Socket Depth | 0.183" (4.65mm) |
| Tail Diameter | - |
| Contact Finish | Gold |
| Board Thickness | - |
| Flange Diameter | 0.105" (2.67mm) |
| Insertion Force | 1.50N ~ 5.01N |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.232" (5.89mm) |
| Pin Hole Diameter | - |
| Accepts Pin Diameter | 0.024" ~ 0.033" (0.60mm ~ 0.85mm) |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.075" ~ 0.079" (1.91mm ~ 2.01mm) |
| Accepts Square Pin Size | - |
| Contact Finish Thickness | 5.90µin (0.150µm) |
