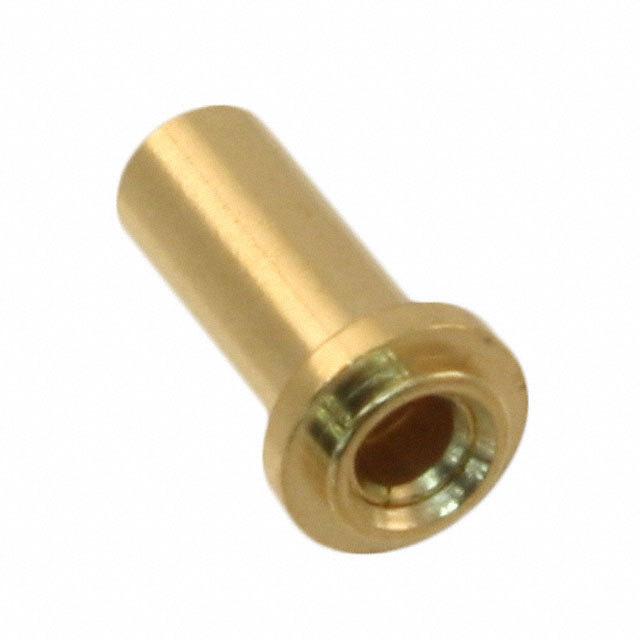

Image is for reference only , See Product Specifications
H3492-01
| Manufacturers: | Harwin Inc. |
|---|---|
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Data Sheet: | H3492-01 |
| Description: | CONN PIN RCPT .079 SOLDER |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Harwin Inc. |
| Product Category | Terminals - PC Pin Receptacles, Socket Connectors |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Tail Type | No Tail |
| Part Status | Active |
| Termination | Solder |
| Socket Depth | 0.161" (4.09mm) |
| Tail Diameter | - |
| Contact Finish | Gold |
| Board Thickness | - |
| Flange Diameter | 0.187" (4.75mm) |
| Insertion Force | 3.00N ~ 6.00N |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.315" (8.00mm) |
| Pin Hole Diameter | - |
| Accepts Pin Diameter | 0.079" ~ 0.091" (2.00mm ~ 2.30mm) |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.158" ~ 0.162" (4.01mm ~ 4.12mm) |
| Accepts Square Pin Size | - |
| Contact Finish Thickness | 3.94µin (0.10µm) |
In Stock 1245 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.19 | $1.17 | $1.14 |
