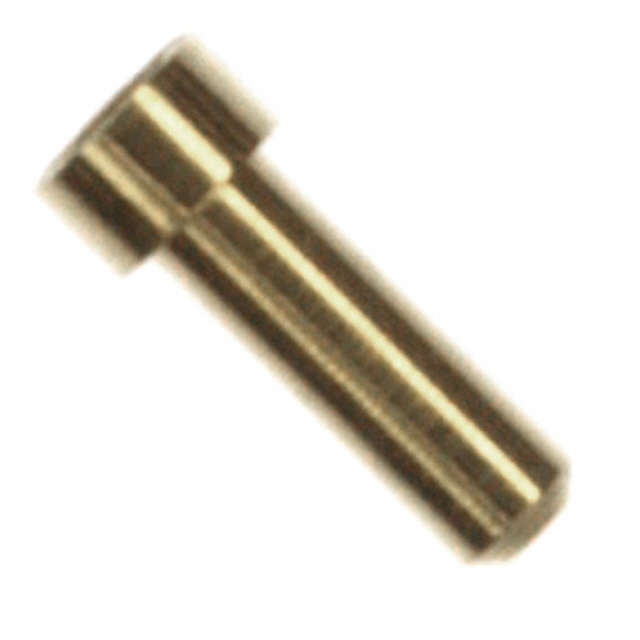

Image is for reference only , See Product Specifications
H3161-01
| Manufacturers: | Harwin Inc. |
|---|---|
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Data Sheet: | H3161-01 |
| Description: | CONN PIN RCPT .035-.041 KNURL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Harwin Inc. |
| Product Category | Terminals - PC Pin Receptacles, Socket Connectors |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Tail Type | No Tail |
| Part Status | Active |
| Termination | Press-Fit, Knurled |
| Socket Depth | 0.140" (3.56mm) |
| Tail Diameter | - |
| Contact Finish | Gold |
| Board Thickness | - |
| Flange Diameter | 0.092" (2.34mm) |
| Insertion Force | 3.00N ~ 9.00N |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.207" (5.26mm) |
| Pin Hole Diameter | - |
| Accepts Pin Diameter | 0.035" ~ 0.041" (0.89mm ~ 1.05mm) |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.075" ~ 0.077" (1.91mm ~ 1.96mm) |
| Accepts Square Pin Size | - |
| Contact Finish Thickness | 5.90µin (0.150µm) |
In Stock 35802 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.27 | $0.26 | $0.26 |
