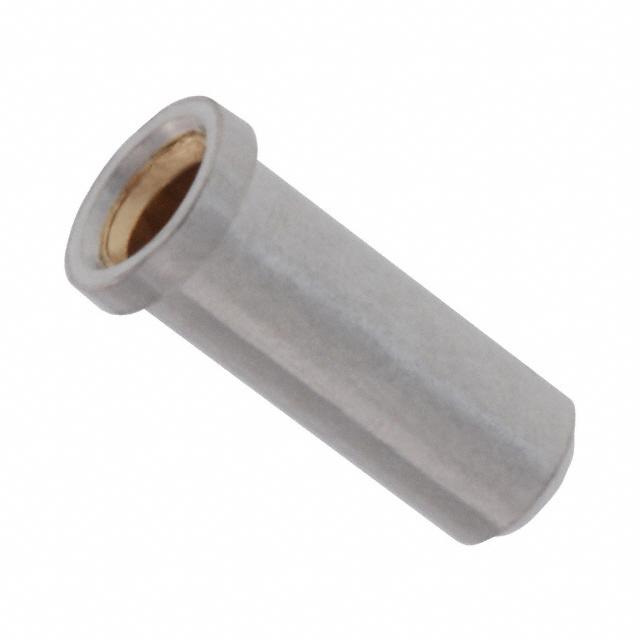

Image is for reference only , See Product Specifications
H3153-05
| Manufacturers: | Harwin Inc. |
|---|---|
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Data Sheet: | H3153-05 |
| Description: | CONN PIN RCPT .018-.020 SOLDER |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Harwin Inc. |
| Product Category | Terminals - PC Pin Receptacles, Socket Connectors |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Tail Type | No Tail |
| Part Status | Active |
| Termination | Solder |
| Socket Depth | 0.124" (3.15mm) |
| Tail Diameter | - |
| Contact Finish | Gold |
| Board Thickness | - |
| Flange Diameter | 0.057" (1.45mm) |
| Insertion Force | - |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.142" (3.61mm) |
| Pin Hole Diameter | 0.043" (1.09mm) |
| Accepts Pin Diameter | 0.018" ~ 0.020" (0.46mm ~ 0.51mm) |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.039" ~ 0.043" (0.99mm ~ 1.09mm) |
| Accepts Square Pin Size | - |
| Contact Finish Thickness | 3.94µin (0.10µm) |
In Stock 5712 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.36 | $0.35 | $0.35 |
