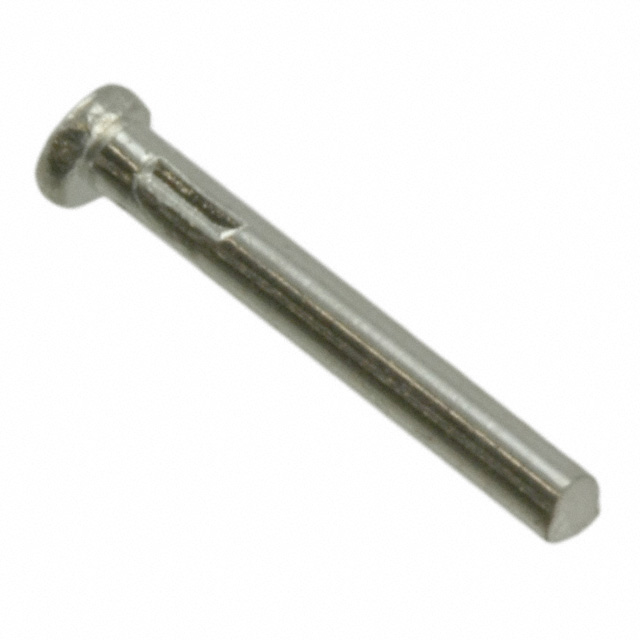

Image is for reference only , See Product Specifications
H3151-01
| Manufacturers: | Harwin Inc. |
|---|---|
| Product Category: | Terminals - PC Pin, Single Post Connectors |
| Data Sheet: | H3151-01 |
| Description: | CONN PC PIN CIRC 0.038DIA TIN |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Harwin Inc. |
| Product Category | Terminals - PC Pin, Single Post Connectors |
| Series | - |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Part Status | Obsolete |
| Termination | Swage |
| Mounting Type | Through Hole |
| Terminal Type | PC Pin |
| Contact Finish | Tin |
| Terminal Style | Double End, Pin Retention |
| Board Thickness | 0.063" ~ 0.094" (1.60mm ~ 2.39mm) |
| Flange Diameter | 0.063" (1.60mm) |
| Contact Material | Brass |
| Insulation Color | - |
| Length - Overall | 0.394" (10.00mm) |
| Length - Above Flange | 0.157" (3.99mm) |
| Length - Below Flange | 0.220" (5.59mm) |
| Material - Insulation | - |
| Mounting Hole Diameter | 0.039" ~ 0.041" (0.99mm ~ 1.04mm) |
| Pin Size - Above Flange | 0.038" (0.97mm) Dia |
| Pin Size - Below Flange | - |
| Contact Finish Thickness | 300.0µin (7.62µm) |
