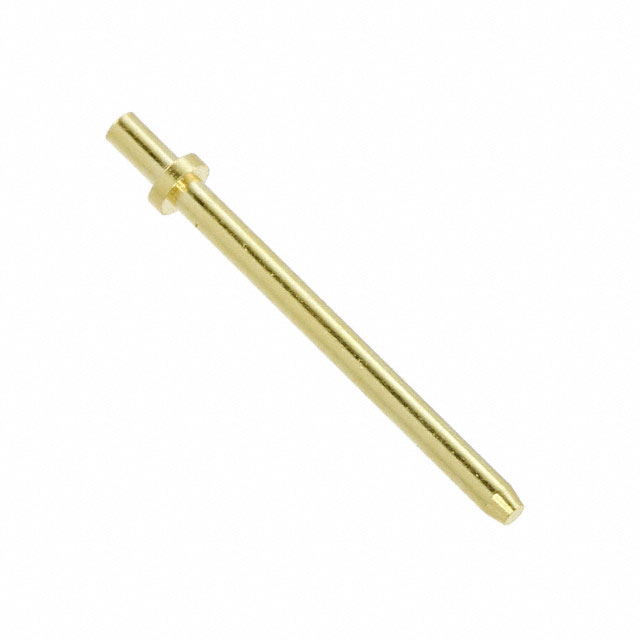

Image is for reference only , See Product Specifications
H2105B01
| Manufacturers: | Harwin Inc. |
|---|---|
| Product Category: | Terminals - PC Pin, Single Post Connectors |
| Data Sheet: | H2105B01 |
| Description: | CONN PC PIN CIRC 0.032DIA TIN |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Harwin Inc. |
| Product Category | Terminals - PC Pin, Single Post Connectors |
| Series | - |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Part Status | Active |
| Termination | Swage |
| Mounting Type | Through Hole |
| Terminal Type | PC Pin |
| Contact Finish | Tin |
| Terminal Style | Single End |
| Board Thickness | 0.063" (1.60mm) |
| Flange Diameter | 0.094" (2.39mm) |
| Contact Material | Brass |
| Insulation Color | - |
| Length - Overall | 0.273" (6.93mm) |
| Length - Above Flange | - |
| Length - Below Flange | 0.253" (6.43mm) |
| Material - Insulation | - |
| Mounting Hole Diameter | 0.052" ~ 0.056" (1.32mm ~ 1.42mm) |
| Pin Size - Above Flange | - |
| Pin Size - Below Flange | 0.032" (0.81mm) Dia |
| Contact Finish Thickness | - |
In Stock 2611 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.41 | $0.40 | $0.39 |
