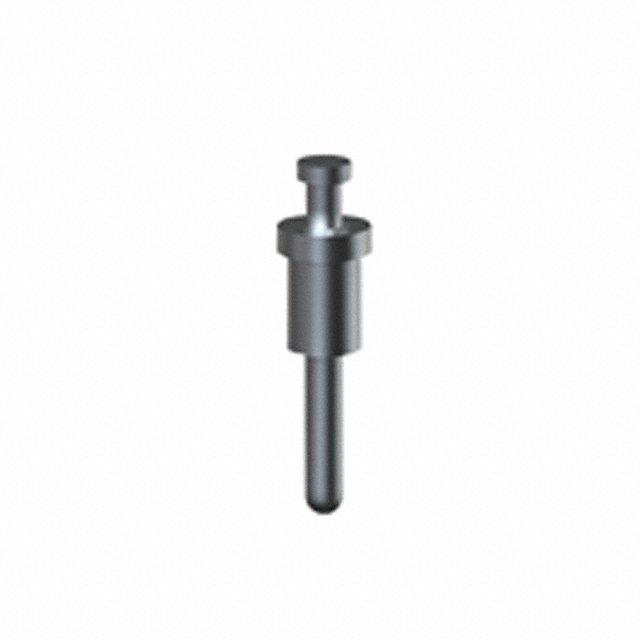

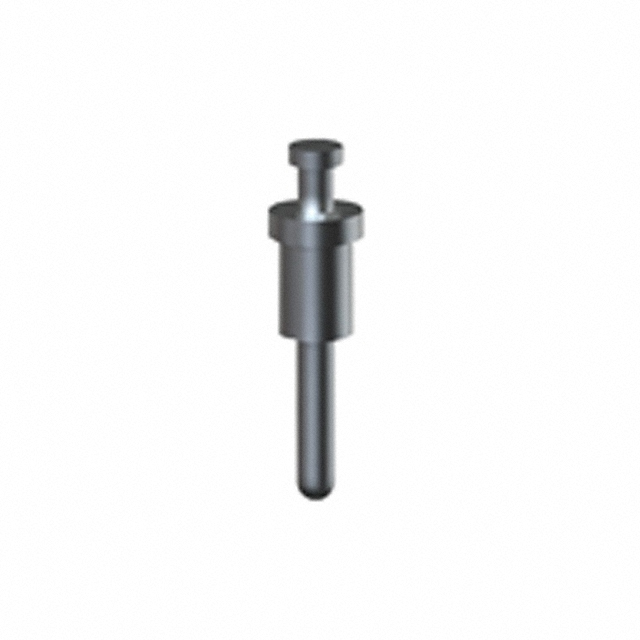

Image is for reference only , See Product Specifications
H2051-01
| Manufacturers: | Harwin Inc. |
|---|---|
| Product Category: | Terminals - Turret Connectors |
| Data Sheet: | H2051-01 |
| Description: | TERM TURRET HOLLOW L=4.78MM TIN |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Harwin Inc. |
| Product Category | Terminals - Turret Connectors |
| Series | - |
| Insulation | Non-Insulated |
| Part Status | Active |
| Termination | Swage |
| Mounting Type | Through Hole |
| Terminal Type | Single End, Fork, Hollow |
| Contact Finish | Tin |
| Board Thickness | 0.063" (1.60mm) |
| Flange Diameter | 0.125" (3.18mm) |
| Staking Side ID | 0.040" ~ 0.043" (1.02mm ~ 1.09mm) |
| Staking Side OD | 0.057" ~ 0.063" (1.45mm ~ 1.59mm) |
| Contact Material | Brass Alloy |
| Insulation Color | - |
| Length - Overall | - |
| Number of Turrets | Single |
| Length - Above Board | 0.188" (4.78mm) |
| Length - Below Flange | 0.089" ~ 0.094" (2.26mm ~ 2.39mm) |
| Material - Insulation | - |
| Diameter - Turret Head | - |
| Mounting Hole Diameter | 0.063" ~ 0.066" (1.60mm ~ 1.68mm) |
| Contact Finish Thickness | - |
In Stock 1389 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.35 | $0.34 | $0.34 |
