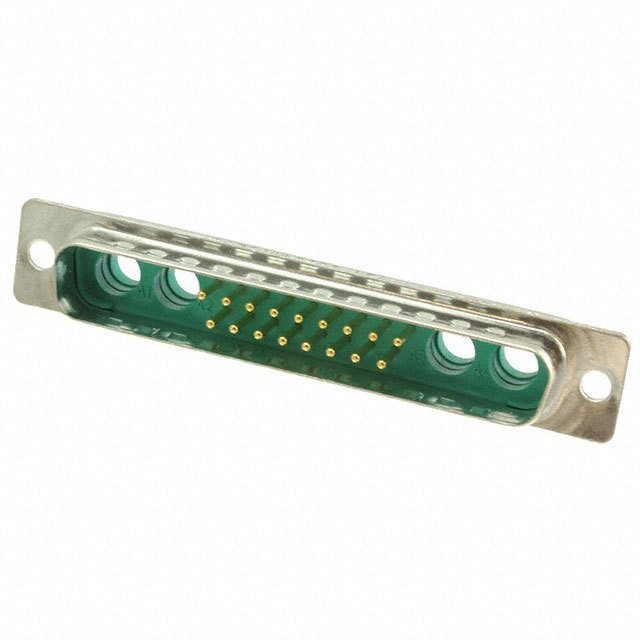

Image is for reference only , See Product Specifications
09670375615050
| Manufacturers: | HARTING |
|---|---|
| Product Category: | D-Sub Connectors |
| Data Sheet: | 09670375615050 |
| Description: | CONN D-SUB PLUG 37P SLDR CUP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | HARTING |
| Product Category | D-Sub Connectors |
| Color | - |
| Series | - |
| Features | Grounding Indents |
| Packaging | Bulk |
| Wire Gauge | 20 AWG |
| Part Status | Active |
| Termination | Solder Cup |
| Contact Form | Machined |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold or Gold-Palladium |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | - |
| Backset Spacing | - |
| Connector Style | D-Sub |
| Contact Material | Copper Alloy |
| Ingress Protection | - |
| Dielectric Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Number of Positions | 37 |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 4 (DC, C) |
In Stock 14 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $12.21 | $11.97 | $11.73 |
