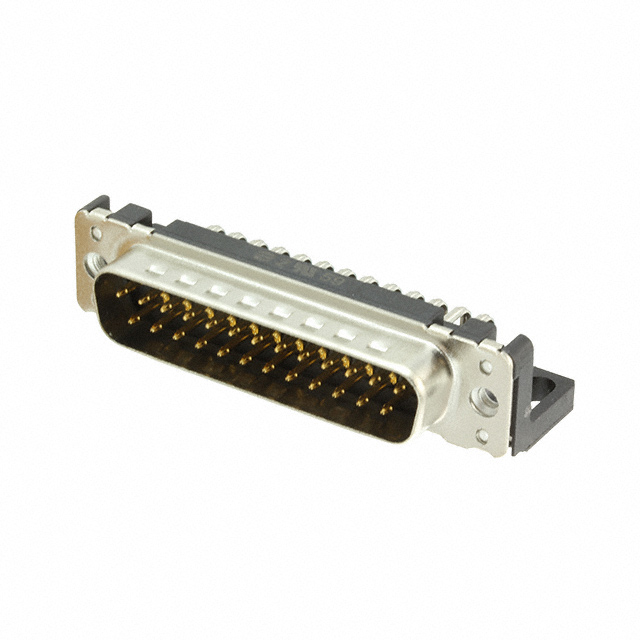

Image is for reference only , See Product Specifications
09653626811
| Manufacturers: | HARTING |
|---|---|
| Product Category: | D-Sub Connectors |
| Data Sheet: | 09653626811 |
| Description: | CONN D-SUB PLUG 25POS R/A SOLDER |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | HARTING |
| Product Category | D-Sub Connectors |
| Color | - |
| Series | - |
| Features | Board Lock, Grounding Indents |
| Packaging | Bulk |
| Wire Gauge | - |
| Part Status | Active |
| Termination | Solder |
| Contact Form | Stamped |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug, Male Pins |
| Contact Finish | - |
| Flange Feature | Housing/Shell (M3) |
| Number of Rows | 2 |
| Voltage Rating | - |
| Backset Spacing | 0.409" (10.40mm) |
| Connector Style | D-Sub |
| Contact Material | Copper Alloy |
| Ingress Protection | - |
| Dielectric Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Number of Positions | 25 |
| Current Rating (Amps) | 6.5A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) |
In Stock 99 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $6.05 | $5.93 | $5.81 |
