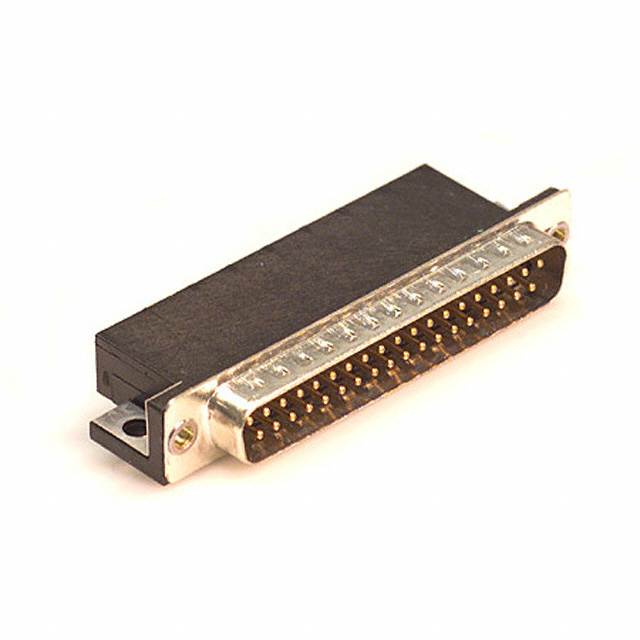

Image is for reference only , See Product Specifications
09563615712
| Manufacturers: | HARTING |
|---|---|
| Product Category: | D-Sub Connectors |
| Data Sheet: | 09563615712 |
| Description: | CONN DSUB HD PLUG 44P VERT SLDR |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | HARTING |
| Product Category | D-Sub Connectors |
| Color | - |
| Series | - |
| Features | Board Lock, Grounding Indents |
| Packaging | Bulk |
| Wire Gauge | - |
| Part Status | Active |
| Termination | Solder |
| Contact Form | Stamped |
| Contact Type | Signal |
| Mounting Type | Through Hole |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold or Gold-Palladium |
| Flange Feature | Board Side (4-40) |
| Number of Rows | 3 |
| Voltage Rating | - |
| Backset Spacing | - |
| Connector Style | D-Sub, High Density |
| Contact Material | Copper Alloy |
| Ingress Protection | - |
| Dielectric Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Number of Positions | 44 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 85°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) High Density |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $7.09 | $6.95 | $6.81 |
