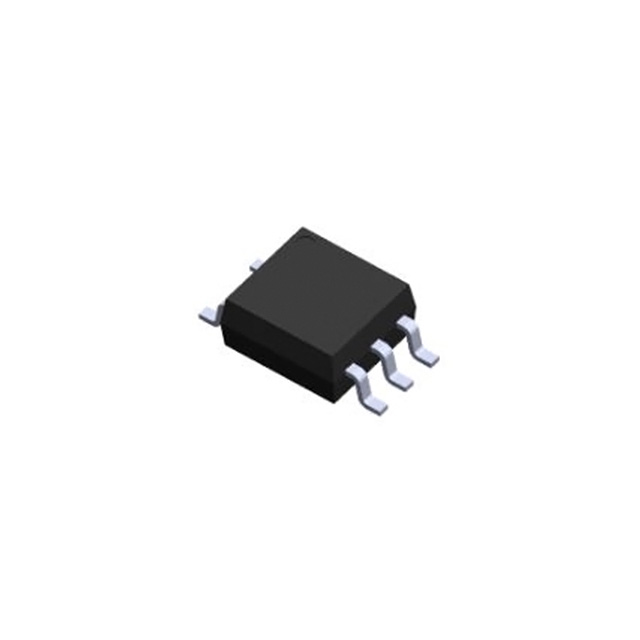

Image is for reference only , See Product Specifications
EL0631(TA)
| Manufacturers: | Everlight Electronics Co Ltd |
|---|---|
| Product Category: | Optoisolators - Logic Output |
| Data Sheet: | EL0631(TA) |
| Description: | OPTOISO 3.75KV 2CH OPEN COL 8SOP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Everlight Electronics Co Ltd |
| Product Category | Optoisolators - Logic Output |
| Series | - |
| Data Rate | 10Mbps |
| Packaging | Digi-Reel® |
| Input Type | DC |
| Output Type | Open Collector |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Voltage - Supply | 7V |
| Number of Channels | 2 |
| Voltage - Isolation | 3750Vrms |
| Operating Temperature | -40°C ~ 100°C |
| Inputs - Side 1/Side 2 | 2/0 |
| Rise / Fall Time (Typ) | 40ns, 10ns |
| Supplier Device Package | 8-SOP |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 20mA |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Common Mode Transient Immunity (Min) | 10kV/µs |
In Stock 1642 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
