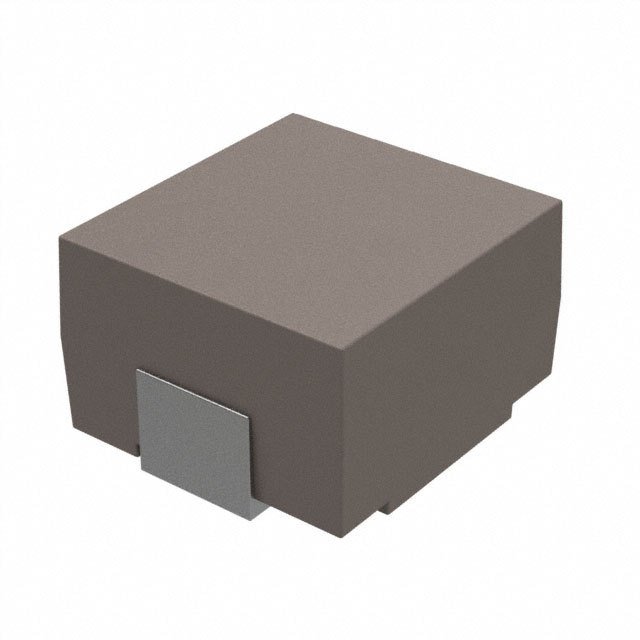

Image is for reference only , See Product Specifications
SD25-150-R
| Manufacturers: | Eaton-Electronics Division |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | SD25-150-R |
| Description: | FIXED IND 15UH 1.67A 95.6 MOHM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Eaton-Electronics Division |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | SD |
| Ratings | - |
| Q @ Freq | - |
| Packaging | Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 15µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| DC Resistance (DCR) | 95.6mOhm |
| Current - Saturation | 1.08A |
| Current Rating (Amps) | 1.67A |
| Height - Seated (Max) | 0.098" (2.50mm) |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 100kHz |
In Stock 2900 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
