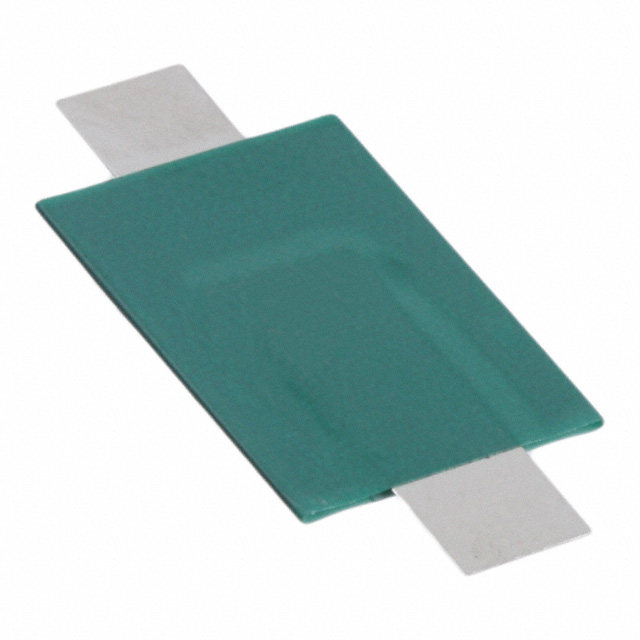

Image is for reference only , See Product Specifications
PTR016V1200-BK
| Manufacturers: | Eaton-Electronics Division |
|---|---|
| Product Category: | PTC Resettable Fuses |
| Data Sheet: | PTR016V1200-BK |
| Description: | PTC RESET FUSE 16V 12A RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Eaton-Electronics Division |
| Product Category | PTC Resettable Fuses |
| Type | Polymeric |
| Series | PolyTron™, PTR016V |
| Ratings | - |
| Approvals | cURus, TUV |
| Packaging | Bulk |
| Part Status | Active |
| Lead Spacing | 0.394" (10.00mm) |
| Time to Trip | 7.5s |
| Current - Max | 100A |
| Mounting Type | Through Hole |
| Voltage - Max | 16V |
| Package / Case | Radial, Disc |
| Thickness (Max) | - |
| Size / Dimension | 0.689" L x 0.122" W (17.50mm x 3.10mm) |
| Current - Trip (It) | 20.4A |
| Height - Seated (Max) | 1.102" (28.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 12A |
| Resistance - Initial (Ri) (Min) | 3 mOhms |
| Resistance - Post Trip (R1) (Max) | 9 mOhms |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.61 | $0.60 | $0.59 |
