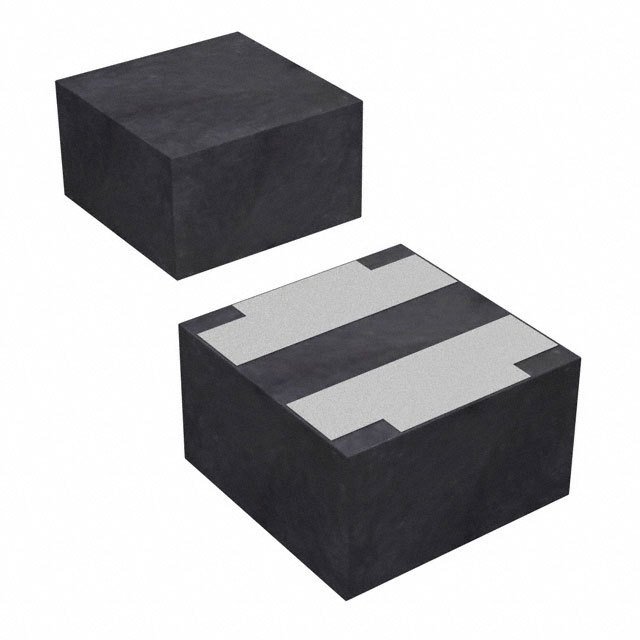

Image is for reference only , See Product Specifications
MPIA4020V2-R22-R
| Manufacturers: | Eaton-Electronics Division |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | MPIA4020V2-R22-R |
| Description: | FIXED IND 220NH 13A 6.6 MOHM SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Eaton-Electronics Division |
| Product Category | Fixed Inductors |
| Type | Molded |
| Series | MPIA40-V2 |
| Ratings | AEC-Q200 |
| Q @ Freq | - |
| Packaging | Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 220nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Material - Core | Metal Composite |
| Size / Dimension | 0.195" L x 0.165" W (4.95mm x 4.20mm) |
| DC Resistance (DCR) | 6.6mOhm Max |
| Current - Saturation | 17A |
| Current Rating (Amps) | 13A |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | 165MHz |
| Inductance Frequency - Test | 100kHz |
In Stock 2851 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.80 | $1.76 | $1.73 |
