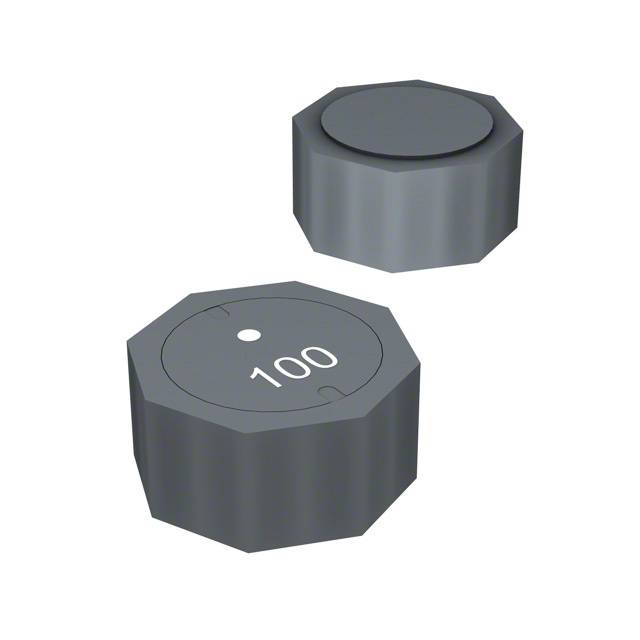

Image is for reference only , See Product Specifications
HCM0503-R47-R
| Manufacturers: | Eaton-Electronics Division |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | HCM0503-R47-R |
| Description: | FIXED IND 470NH 12A 7.2 MOHM SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Eaton-Electronics Division |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | HCM0503 |
| Ratings | - |
| Q @ Freq | - |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 470nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Iron Powder |
| Size / Dimension | 0.203" L x 0.201" W (5.15mm x 5.10mm) |
| DC Resistance (DCR) | 7.2mOhm Max |
| Current - Saturation | 11.5A |
| Current Rating (Amps) | 12A |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 100kHz |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.45 | $0.44 | $0.43 |
