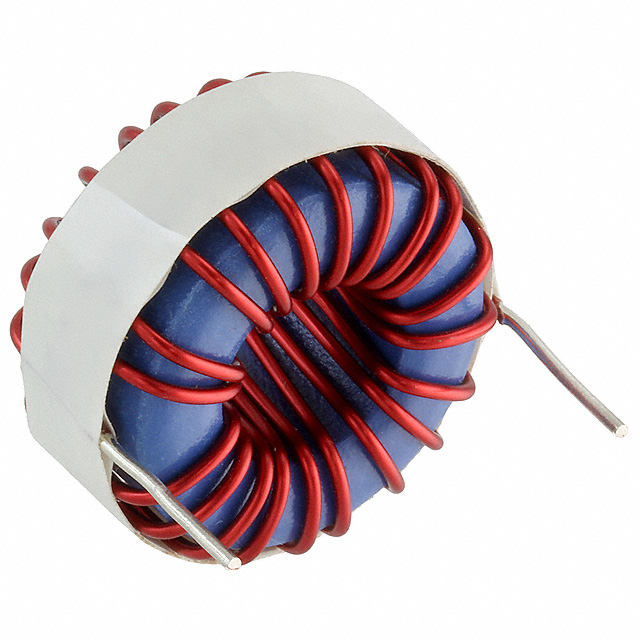

Image is for reference only , See Product Specifications
HC3-5R6-R
| Manufacturers: | Eaton-Electronics Division |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | HC3-5R6-R |
| Description: | FIXED IND 5.6UH 33.8A 2.17 MOHM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Eaton-Electronics Division |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | HC3 |
| Ratings | - |
| Q @ Freq | - |
| Packaging | Bulk |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 5.6µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 1.181" L x 0.996" W (30.00mm x 25.30mm) |
| DC Resistance (DCR) | 2.17mOhm Max |
| Current - Saturation | 34.5A |
| Current Rating (Amps) | 33.8A |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 300kHz |
In Stock 13 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $9.47 | $9.28 | $9.09 |
Request Quote
