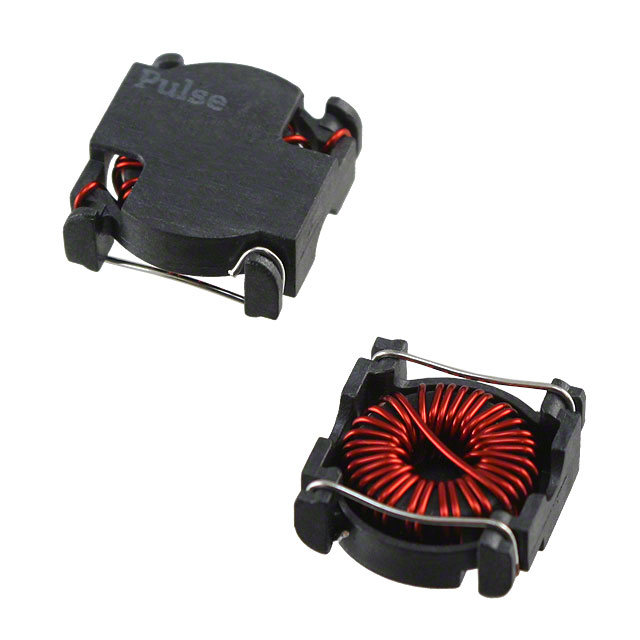

Image is for reference only , See Product Specifications
HC2-2R2-R
| Manufacturers: | Eaton-Electronics Division |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | HC2-2R2-R |
| Description: | FIXED IND 2.2UH 24.3A 2.3 MOHM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Eaton-Electronics Division |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | HC2 |
| Ratings | - |
| Q @ Freq | - |
| Packaging | Bulk |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 2.2µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | - |
| Size / Dimension | 0.756" L x 0.748" W (19.20mm x 19.00mm) |
| DC Resistance (DCR) | 2.3mOhm Max |
| Current - Saturation | 31.9A |
| Current Rating (Amps) | 24.3A |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 300kHz |
In Stock 88 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $5.97 | $5.85 | $5.73 |
