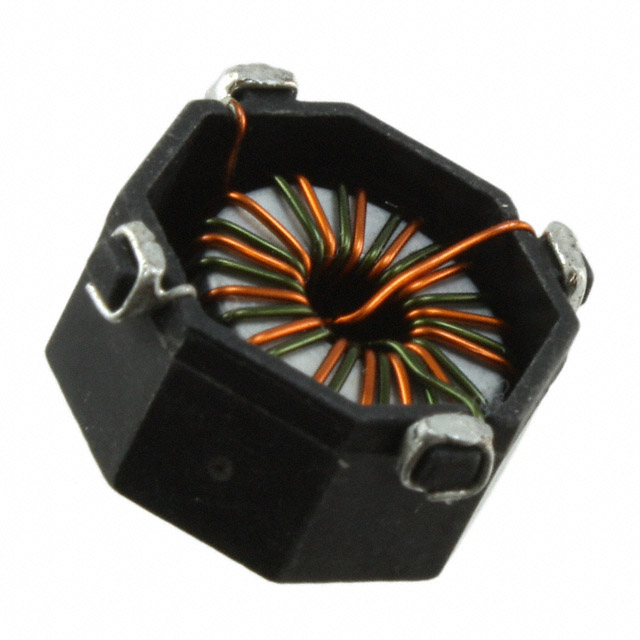

Image is for reference only , See Product Specifications
CTX50-1-R
| Manufacturers: | Eaton-Electronics Division |
|---|---|
| Product Category: | Arrays, Signal Transformers |
| Data Sheet: | CTX50-1-R |
| Description: | INDUCT ARRAY 2 COIL 50.63UH SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Eaton-Electronics Division |
| Product Category | Arrays, Signal Transformers |
| Height | 0.165" (4.19mm) |
| Series | OCTA-PAC® |
| Packaging | Digi-Reel® |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current Rating - Series | 320mA |
| Current Rating - Parallel | 640mA |
| DC Resistance (DCR) - Series | 1.461Ohm Max |
| DC Resistance (DCR) - Parallel | 365mOhm Max |
| Inductance - Connected In Series | 202.5µH |
| Inductance - Connected In Parallel | 50.63µH |
In Stock 1075 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
