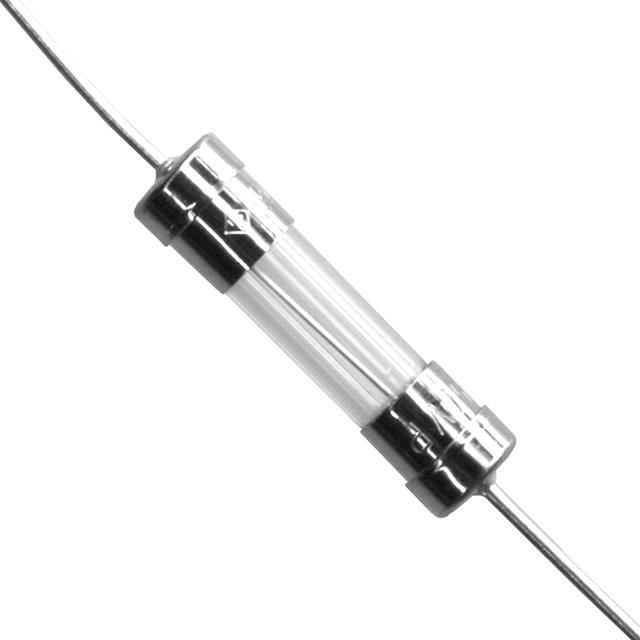

Image is for reference only , See Product Specifications
BK1-S505H-1.6-R
| Manufacturers: | Eaton-Electronics Division |
|---|---|
| Product Category: | Fuses |
| Data Sheet: | BK1-S505H-1.6-R |
| Description: | FUSE CERAMIC 1.6A 600VAC 400VDC |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Eaton-Electronics Division |
| Product Category | Fuses |
| Color | - |
| Series | S505H |
| Approvals | CCC, cULus, PSE/JET, TUV |
| Fuse Type | Cartridge, Ceramic |
| Packaging | Bulk |
| Part Status | Active |
| Melting I²t | 6.78 |
| Mounting Type | Holder |
| Response Time | Slow Blow |
| Package / Case | 5mm x 20mm |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| DC Cold Resistance | 0.07 Ohms |
| Voltage Rating - AC | 600V |
| Voltage Rating - DC | 400V |
| Current Rating (Amps) | 1.6A |
| Operating Temperature | -40°C ~ 85°C |
| Breaking Capacity @ Rated Voltage | 100A AC, 1.5kA DC |
In Stock 685 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.71 | $1.68 | $1.64 |
