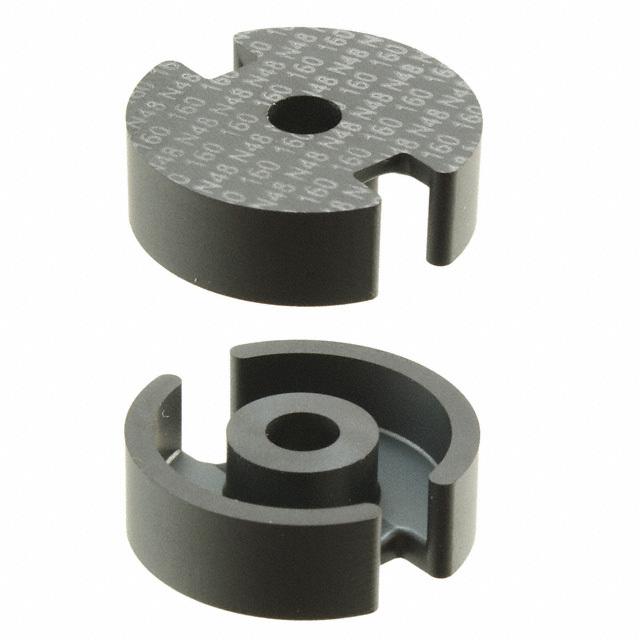

Image is for reference only , See Product Specifications
B66233GX172
| Manufacturers: | EPCOS (TDK) |
|---|---|
| Product Category: | Ferrite Cores |
| Data Sheet: | B66233GX172 |
| Description: | FERRITE CORE |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | EPCOS (TDK) |
| Product Category | Ferrite Cores |
| Gap | - |
| Width | 11.00mm |
| Finish | Uncoated |
| Height | 16.40mm |
| Length | 32.00mm |
| Series | - |
| Diameter | - |
| Material | N72 |
| Core Type | E |
| Tolerance | - |
| Part Status | Active |
| Core Factor (ΣI/A) mm | 0.76 |
| Supplier Device Package | E 32 x 16 x 11 |
| Effective Area (Ae) mm² | 97 |
| Effective Length (le) mm | 74 |
| Initial Permeability (µi) | 2500 |
| Effective Magnetic Volume (Ve) mm³ | 7187 |
| Minimum Core Cross Section (Amin) mm² | 95 |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
