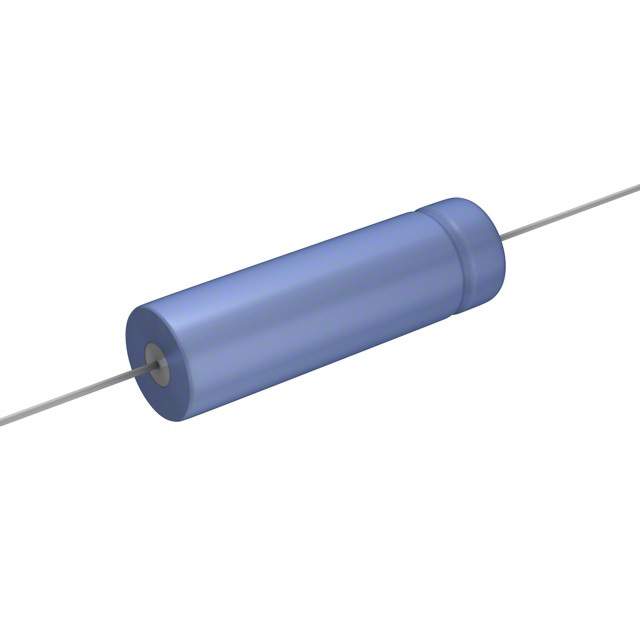

Image is for reference only , See Product Specifications
B43504B2128M82
| Manufacturers: | EPCOS (TDK) |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | B43504B2128M82 |
| Description: | CAP ALUM 1200UF 20% 250V SNAP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | EPCOS (TDK) |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | B43504 |
| Ratings | - |
| Impedance | 150 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 1200µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 3 Lead |
| Voltage - Rated | 250V |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.252" (57.20mm) |
| Operating Temperature | -40°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 3.09A @ 100Hz |
| ESR (Equivalent Series Resistance) | 120mOhm @ 100Hz |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $6.87 | $6.73 | $6.60 |
