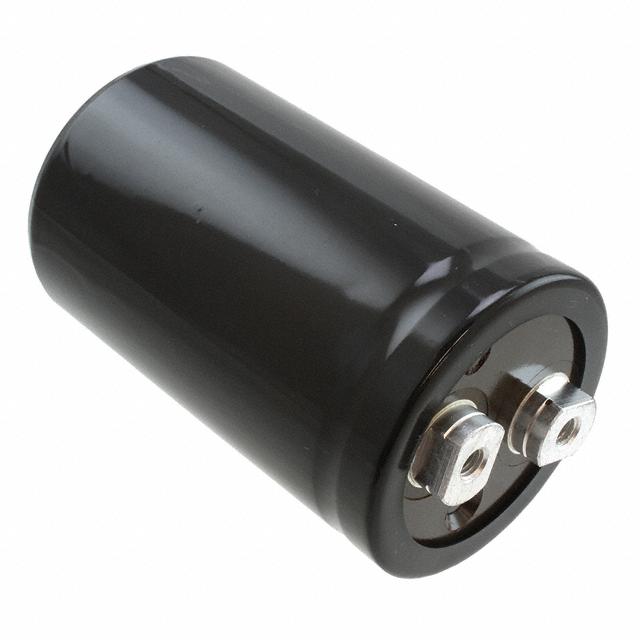

Image is for reference only , See Product Specifications
B41580A5100M000
| Manufacturers: | EPCOS (TDK) |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | B41580A5100M000 |
| Description: | CAP ALUM 100000UF 20% 25V SCREW |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | EPCOS (TDK) |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | B41580 |
| Ratings | - |
| Impedance | 7.6 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 100000µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.874" (22.20mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Voltage - Rated | 25V |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Size / Dimension | 2.032" Dia (51.60mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Operating Temperature | -40°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 15A @ 100Hz |
| ESR (Equivalent Series Resistance) | 9.4mOhm @ 100Hz |
In Stock 4 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $28.79 | $28.21 | $27.65 |
