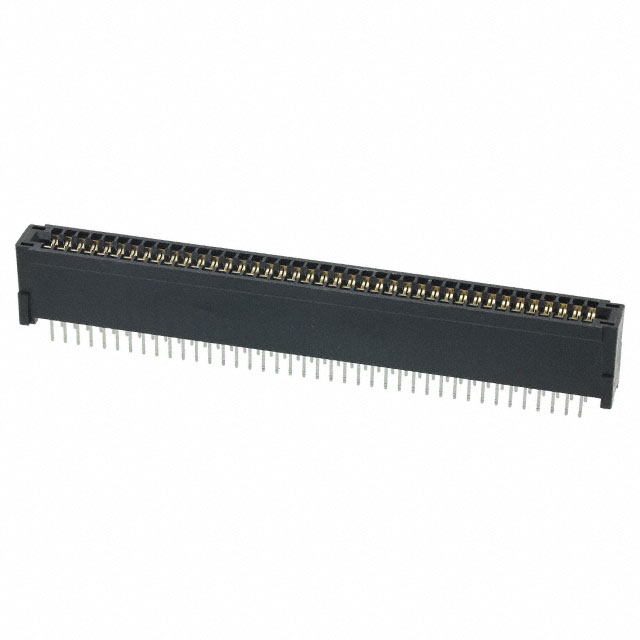

Image is for reference only , See Product Specifications
307-036-520-201
| Manufacturers: | EDAC Inc. |
|---|---|
| Product Category: | Card Edge Connectors - Edgeboard Connectors |
| Data Sheet: | 307-036-520-201 |
| Description: | CONN EDGE DUAL FMALE 36POS 0.156 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | EDAC Inc. |
| Product Category | Card Edge Connectors - Edgeboard Connectors |
| Color | Green |
| Pitch | 0.156" (3.96mm) |
| Gender | Female |
| Series | 307 |
| Features | - |
| Read Out | Dual |
| Card Type | Non Specified - Dual Edge |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Contact Type | - |
| Mounting Type | Through Hole |
| Card Thickness | 0.062" (1.57mm) |
| Contact Finish | Gold |
| Flange Feature | - |
| Number of Rows | 2 |
| Contact Material | Copper, Nickel, Tin Alloy |
| Number of Positions | 36 |
| Material - Insulation | Polyester Thermoplastic |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish Thickness | - |
| Number of Positions/Bay/Row | 18 |
In Stock 6 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $5.87 | $5.75 | $5.64 |
