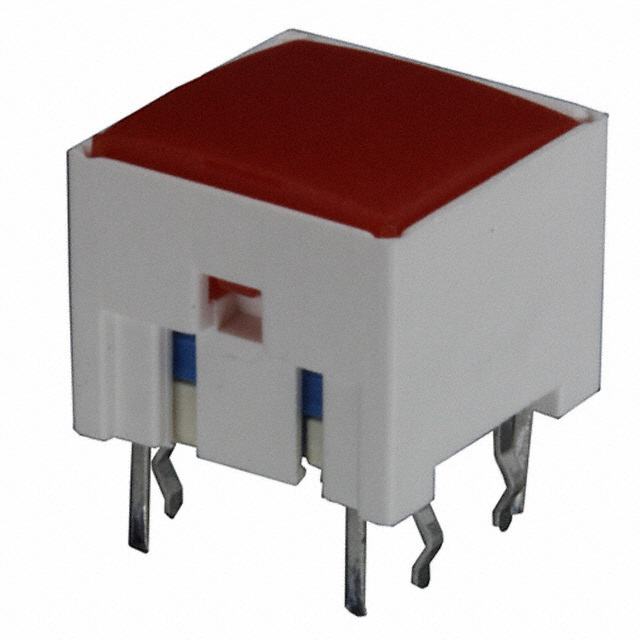

Image is for reference only , See Product Specifications
TL6100DF130QP
| Manufacturers: | E-Switch |
|---|---|
| Product Category: | Tactile Switches |
| Data Sheet: | TL6100DF130QP |
| Description: | SWITCH TACTILE SPST-NO 0.05A 12V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | E-Switch |
| Product Category | Tactile Switches |
| Series | TL6100 |
| Circuit | SPST-NO |
| Outline | 7.20mm x 7.20mm |
| Features | Process Sealed |
| Packaging | Tube |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Switch Travel | 0.50mm |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 130gf |
| Switch Function | Off-Mom |
| Actuator Material | Polyamide (PA), Nylon |
| Termination Style | PC Pin |
| Ingress Protection | - |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Illumination Type, Color | - |
| Actuator Length, Right Angle | - |
| Illumination Voltage (Nominal) | - |
| Actuator Height off PCB, Vertical | 10.00mm |
In Stock 990 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.91 | $0.89 | $0.87 |
