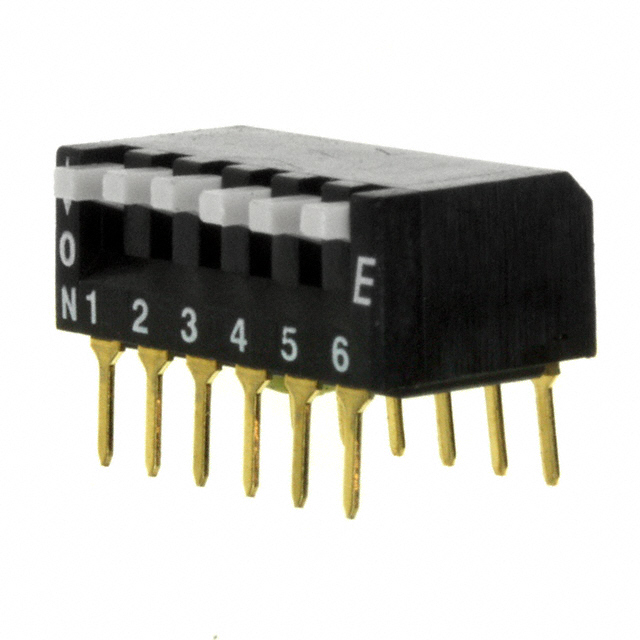

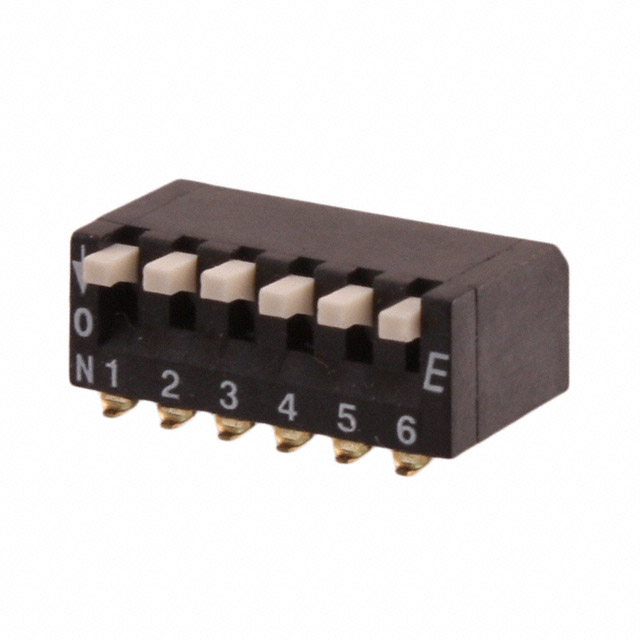

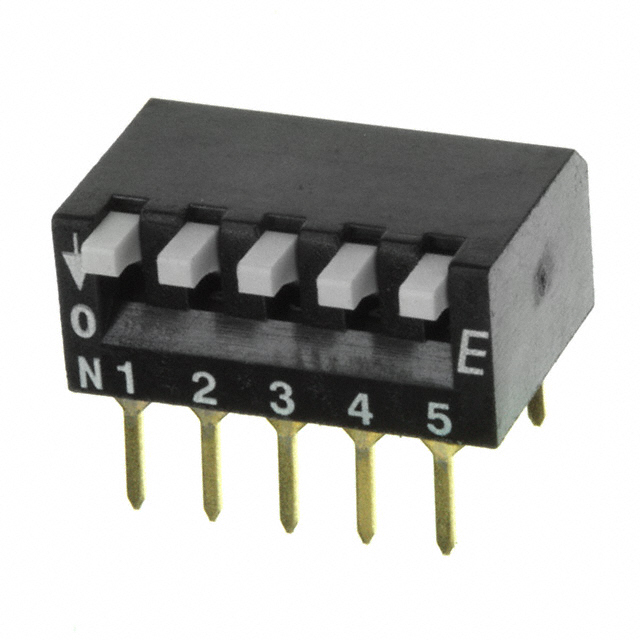

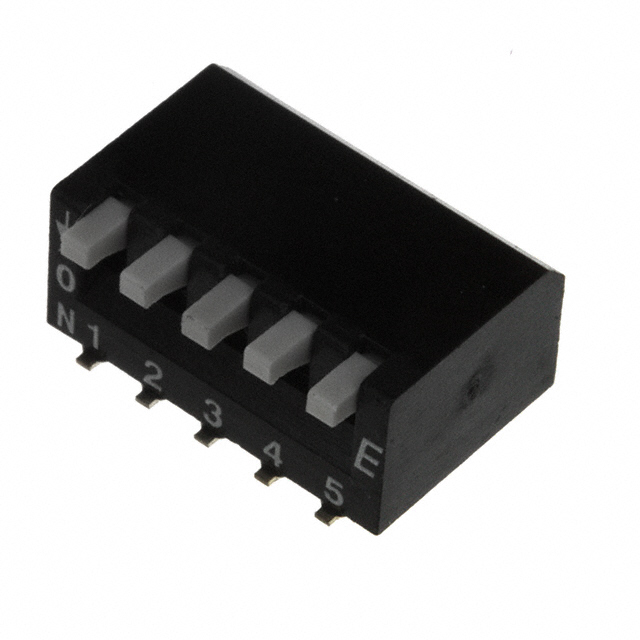

Image is for reference only , See Product Specifications
KAR08LGGT
| Manufacturers: | E-Switch |
|---|---|
| Product Category: | DIP Switches |
| Data Sheet: | KAR08LGGT |
| Description: | SWITCH PIANO DIP SPST 25MA 24V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | E-Switch |
| Product Category | DIP Switches |
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.890" (22.61mm) |
| Series | KAR |
| Circuit | SPST |
| Features | Process Sealed |
| Washable | Yes |
| Packaging | Tube |
| Part Status | Obsolete |
| Actuator Type | Piano |
| Body Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Level | Raised |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Electrical Life | - |
| Mechanical Life | 2,000 Cycles |
| Contact Material | Copper Alloy |
| Termination Style | Gull Wing |
| Height Above Board | 0.287" (7.30mm) |
| Number of Positions | 8 |
| Current Rating (Amps) | 25mA |
| Operating Temperature | -30°C ~ 85°C |
